6809-2RS Ball Bearing 45x58x7mm - Sealed
UPC: 00193019074480
Type: Deep Groove Radial Ball Bearing
Cage: Steel
Balls: Chrome Steel
Radial Clearance: C0

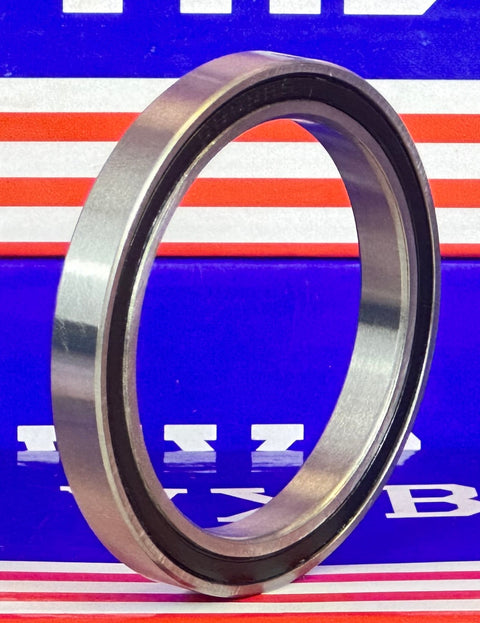

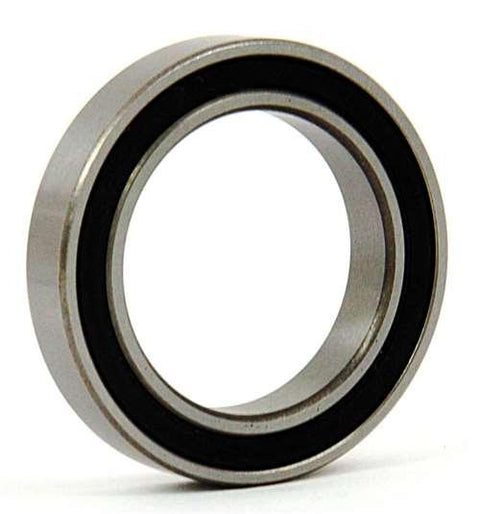

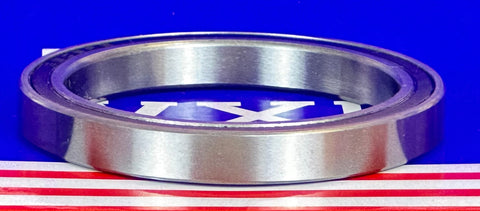

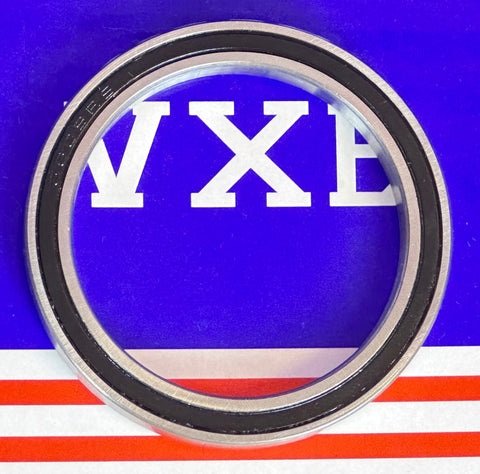

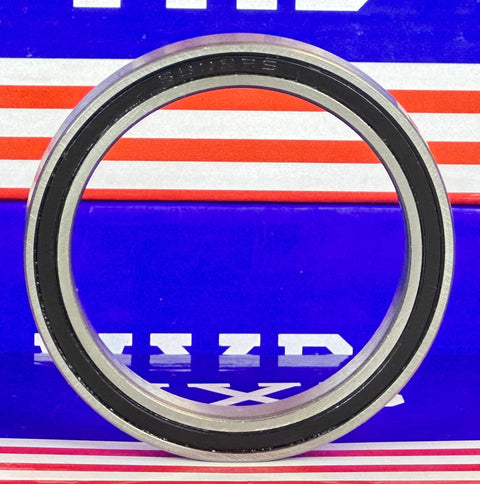

6809-2RS Sealed Ball Bearing
✔️ 45mm ID × 58mm OD × 7mm Wide - EMQ - Chrome Steel
The 6809-2RS is a slim-section, deep groove ball bearing with rubber seals on both sides for protection and long-lasting performance. Built from chrome steel and pre-lubricated with grease, it’s ideal for tight-space applications in electric motors, robotics, and industrial equipment.
✅ Inner diameter: 45mm
✅ Outer diameter: 58mm
✅ Width: 7mm
✅ Material: Chrome steel
✅ Cage: Steel
✅ Seals: Double rubber seals (2RS)
✅ Clearance: C0 (standard)
✅ Lubrication: Greased, self-lubricated
✅ Dynamic load rating (Cr): 5,350 N
✅ Static load rating (Cor): 4,900 N
✅ Max speed (grease): 6,000 RPM
✅ Quality: EMQ (Electric Motor Quality)
✅ Pack size: 1 bearing
Dimensions Table:
| Inner (mm) | Outer (mm) | Width (mm) | Cr (N) | Cor (N) | RPM (Grease) |
|---|---|---|---|---|---|
| 45 | 58 | 7 | 5350 | 4900 | 6000 |
Equivalent to:
✅ 61809-2RS1
✅ 6809RS
💡 What are the benefits of slim deep groove ball bearings in high-speed machinery?
Slim bearings offer space efficiency without sacrificing performance. Their low-profile design makes them perfect for compact setups requiring smooth, quiet, and high-speed rotation - like in electric motors, automation, or precision equipment.
Thin, strong, and sealed for performance - grab this bearing now and power up your precision build!
