6809RS Bearing 45x58x7mm - Sealed Ball Bearing
UPC: 00193019009550
Item: Double Sealed Ball Bearings
6809RS Size: 45mm x 58mm x 7mm Ball Bearings
Dimensions: 45*58*7 mm/Metric
Dynamic load rating Cr: 5,350 N

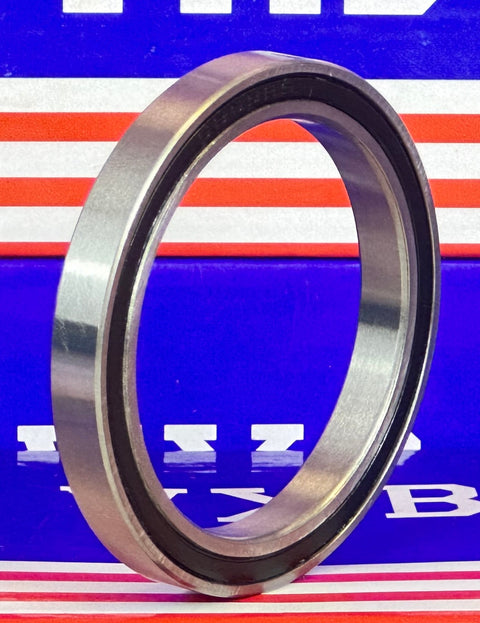

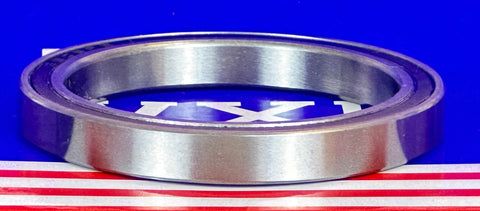

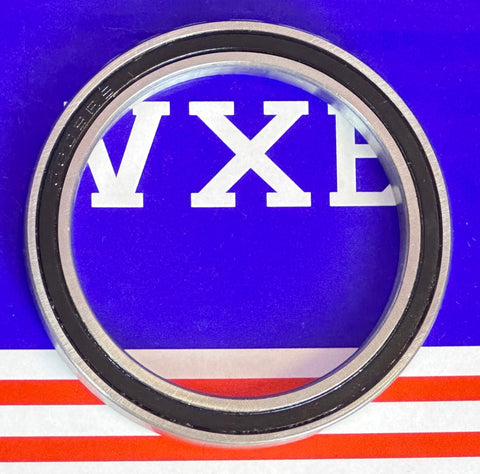

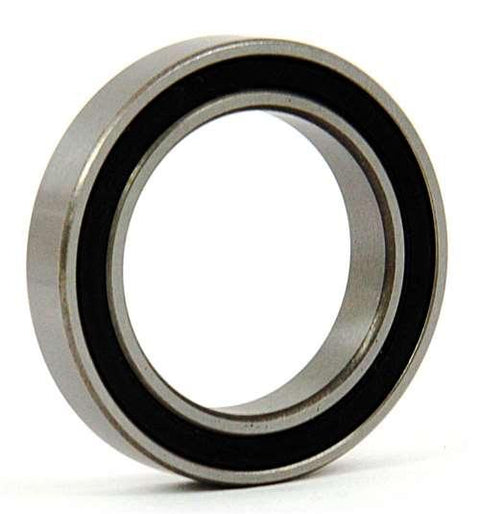

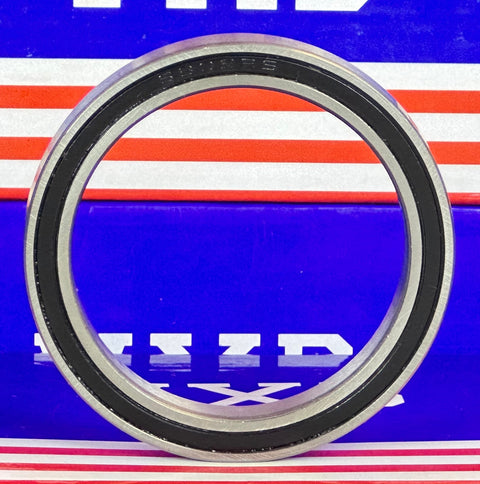

6809RS Sealed Slim Ball Bearing
✔️ 45mm ID × 58mm OD × 7mm Wide - EMQ Chrome Steel
The 6809RS is a slim-section deep groove ball bearing, sealed on both sides with rubber for long-lasting protection. Built from durable chrome steel and pre-lubricated with grease, it’s perfect for compact, high-speed applications like electric motors, gearboxes, and robotics.
✅ Inner diameter: 45mm
✅ Outer diameter: 58mm
✅ Width: 7mm
✅ Material: Chrome steel
✅ Balls: Chrome steel
✅ Cage: Steel
✅ Seals: Double rubber seals (RS)
✅ Clearance: C0 (standard)
✅ Dynamic load rating (Cr): 5,350 N
✅ Static load rating (Cor): 4,900 N
✅ Max speed (grease): 6,000 RPM
✅ Type: Deep groove radial ball bearing
✅ Quality: Electric motor grade (EMQ)
✅ Pack size: 1 bearing
Dimensions Table:
| Inner (mm) | Outer (mm) | Width (mm) | Cr (N) | Cor (N) | RPM (Grease) |
|---|---|---|---|---|---|
| 45 | 58 | 7 | 5350 | 4900 | 6000 |
Equivalent to:
✅ 6809-2RS1
✅ 6809-2RZ
✅ 61809RS1
💡 Why are slim radial ball bearings ideal for tight assemblies?
Slim bearings like the 6809RS are built to save space while delivering high-speed, low-friction rotation. They’re a top choice in electric motors and precision systems where compact performance is critical.
Smooth, sealed, and ready to perform - grab one now and power up your compact machine with confidence!
