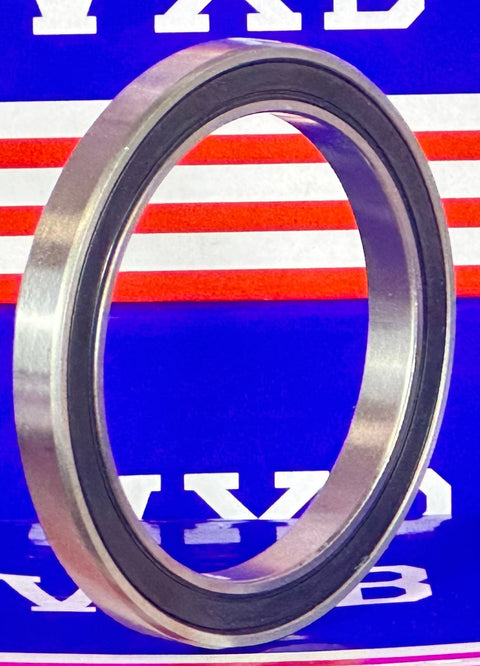

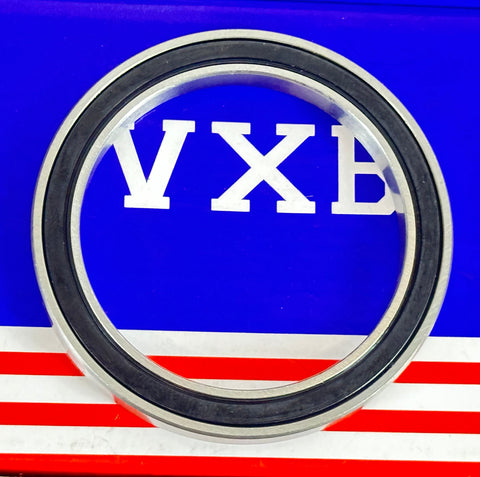

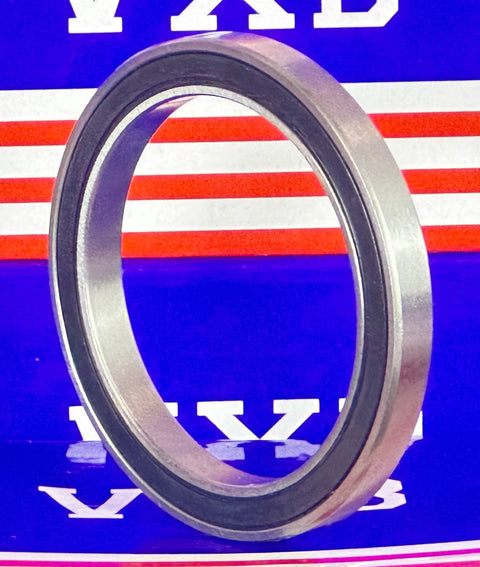

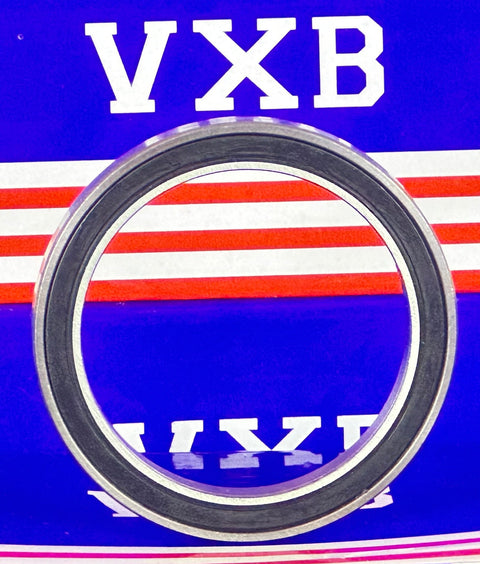

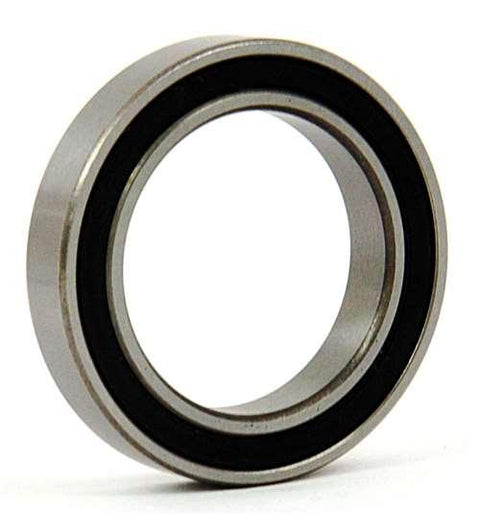

6810RS Bearing 50x65x7mm - Sealed Ball Bearing
UPC: 00193019026458
Item: Double Sealed Ball Bearings
6810RS Size: 50mm x 65mm x 7mm Ball Bearings
Dimensions: 50*65*7 mm/Metric
Dynamic load rating Cr: 6,400 N
6810RS Sealed Slim Ball Bearing
✔️ 50mm ID × 65mm OD × 7mm Wide - EMQ Chrome Steel
The 6810RS is a slim-section deep groove ball bearing with double rubber seals to block out dust and moisture. Built from tough chrome steel and pre-greased for smooth, long-lasting performance, it’s perfect for compact, high-speed machines like electric motors, gear systems, and precision devices.
✅ Inner diameter: 50mm
✅ Outer diameter: 65mm
✅ Width: 7mm
✅ Material: Chrome steel
✅ Cage: Steel
✅ Balls: Chrome steel
✅ Seals: Double rubber seals (RS)
✅ Clearance: C0 (standard)
✅ Dynamic load rating (Cr): 6,400 N
✅ Static load rating (Cor): 5,800 N
✅ Max speed (grease): 5,300 RPM
✅ Type: Deep groove radial bearing
✅ Quality: Electric motor grade (EMQ)
✅ Pack size: 1 bearing
Dimensions Table:
| Inner (mm) | Outer (mm) | Width (mm) | Cr (N) | Cor (N) | RPM (Grease) |
|---|---|---|---|---|---|
| 50 | 65 | 7 | 6400 | 5800 | 5300 |
Equivalent to:
✅ 6810-2RS1
✅ 6810-2RZ
✅ 61810RS1
💡 What’s the advantage of using slim deep groove ball bearings in tight assemblies?
Slim ball bearings deliver high-speed rotation in compact spaces without sacrificing strength or durability. Their low-profile design is perfect for motors, robotics, and other gear where size and precision matter most.
Strong, sealed, and space-saving - add this bearing to your build and keep things running sharp!
