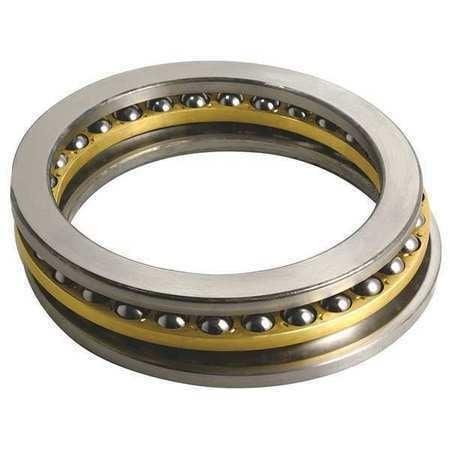

51134M ABEC-5 Quality Thrust Ball Bearing - Bronze Cage 170x215x34mm
$799.47 CAD
$1,079.28 CADyou save $279.81 CAD
SKU: 51134M-ABEC-5
UPC: 0
UPC: 0
Size : 51134M ABEC-5
Size: 170mm x 215mm x 34mm
Type: Single Thrust Ball Bearing
Cage : Bronze Cage
Quantity : One Bearing
Size: 170mm x 215mm x 34mm
Type: Single Thrust Ball Bearing
Cage : Bronze Cage
Quantity : One Bearing
81101M Cylindrical Roller Thrust Bearings Bronze Cage 12x26x9 mm
| 51134M ABEC-5 Single Thrust Ball Bearing Bronze Cage 170mm x 215mm x 34mm |
51134M ABEC-5 Thrust Ball Bearing Cage inner diameter is 170mm outer diameter is 215mm and width is 34mm.
- 51134M ABEC-5
- Thrust Ball Bearing
- Cage: Bronze Cage
- Dimensions: 170mm x 215mm x 34mm/Metric
- ID (inner diameter)/Bore: 170mm
- OD (outer diameter): 215mm
- Width: 34mm
- Size: 170mm x 215mm x 34mm
- Quantity: 1 Bearing
- Dynamic load rating Cr: 14400 N
- Static load rating Cor: 28500 N
- Limiting speed: 13600 1/min

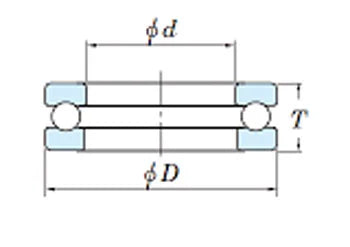

| d | D | T | ||||||||
| 170 | 215 | 34 | ||||||||
💡 What Does ABEC-5 Mean?
ABEC-5 is a precision rating from the Annular Bearing Engineers’ Committee (ABEC), indicating that the bearing is manufactured with tighter tolerances for improved accuracy and performance.
Bearings rated ABEC-5 are designed for high-speed, low-friction operation, making them ideal for electric motors, precision tools, 3D printers, and performance equipment where smooth rotation and long service life are essential.
