52202 Double-Direction Thrust Bearing 10x32x22mm

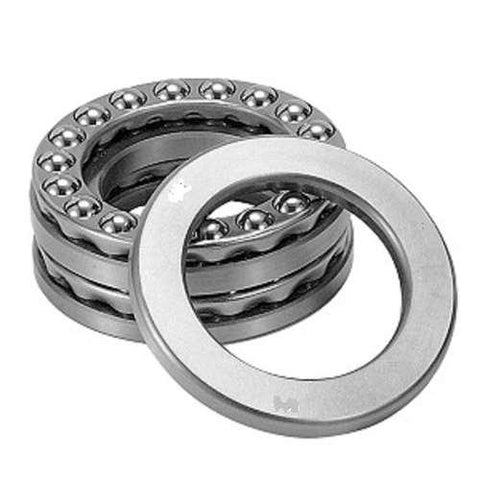

52202 Double-Direction Thrust Ball Bearing
✔️ Chrome Steel Axial Bearing 10mm x 32mm x 22mm

The 52202 is a double-direction thrust ball bearing designed to handle axial loads in both directions. Built from durable chrome steel, it’s perfect for vertical shafts, turntables, and other setups that need high axial support without compromising rotation.

✅ Inner diameter: 10mm
✅ Outer diameter: 32mm
✅ Width: 22mm
✅ Made from 52100 chrome alloy steel
✅ Designed to handle axial (thrust) loads in both directions
✅ Dynamic load rating: 16,700 N
✅ Static load rating: 24,800 N
✅ Max speed (grease): 4,800 RPM
✅ Max speed (oil): 7,000 RPM
✅ Pack size: 1 bearing

💡 What makes double-direction thrust bearings useful in vertical load applications?
These bearings manage axial pressure from both sides with stable rotation.

• Support axial forces in two directions simultaneously

• Ideal for rotating tables, machine tool spindles, and presses

• Built to stay aligned under vertical or side-loaded setups

• Reduce wear in axial systems needing clean, controlled motion

When you need strong axial support in both directions, this bearing keeps things tight and turning. Add one to your build and keep it locked in under load.
