81105M Cylindrical Roller Thrust Bearing 25x42x11mm - Bronze Cage
UPC: 0
Size: 25mm x 42mm x 11mm
Bearing Inner Diameter: 25mm
Bearing Outer Diameter: 42mm
Bearing Width: 11mm

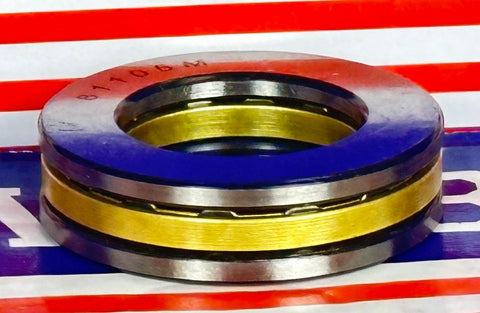

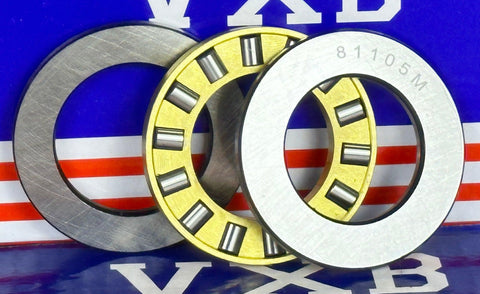

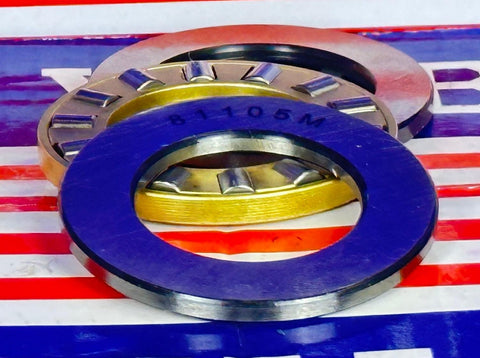

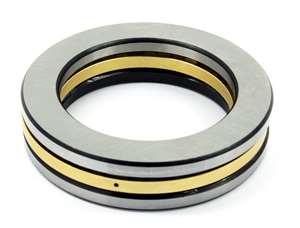

81105M Cylindrical Roller Thrust Bearing - Bronze Cage
✔️ 25mm ID x 42mm OD x 11mm wide, built for axial load support
The 81105M is a thrust-style cylindrical roller bearing designed to handle heavy axial loads in one direction. With a bronze cage for durability and precision roller alignment, it’s ideal for applications like gearboxes, machine beds, and vertical shafts. Pack size: 1 bearing.
✅ Type: Cylindrical roller thrust bearing
✅ Inner diameter: 25mm
✅ Outer diameter: 42mm
✅ Width: 11mm
✅ Cage: Bronze
✅ Dynamic load rating (Cr): 33,500 N
✅ Static load rating (Cor): 76,000 N
✅ Limiting speed: 8,900 RPM
✅ Quantity: 1 bearing
Dimensions (Metric):
| Inner (ID) | Outer (OD) | Width (T) |
|---|---|---|
| 25mm | 42mm | 11mm |
Additional Specs:
| D1 | d1 | r min |
|---|---|---|
| 26mm | 42mm | 0.6mm |
💡 Why use cylindrical roller thrust bearings for axial loads?
They're built for pure thrust and high capacity.
-
Bronze cage guides rollers for even load distribution
-
Handles large axial forces with minimal axial space
-
High-speed rated for demanding industrial systems
-
Common in vertical gear shafts, heavy presses, and pumps
Need a bearing that stands up to axial pressure? Drop this one in and let it take the load like a pro!
