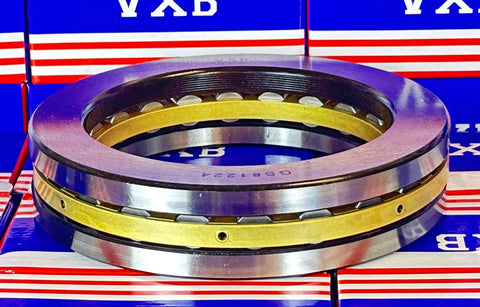

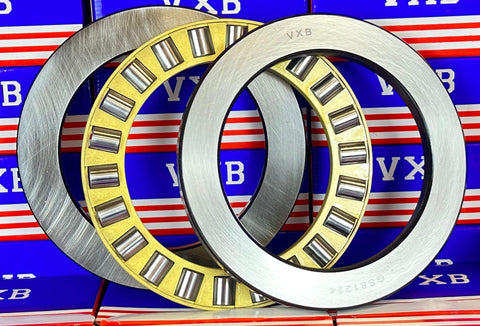

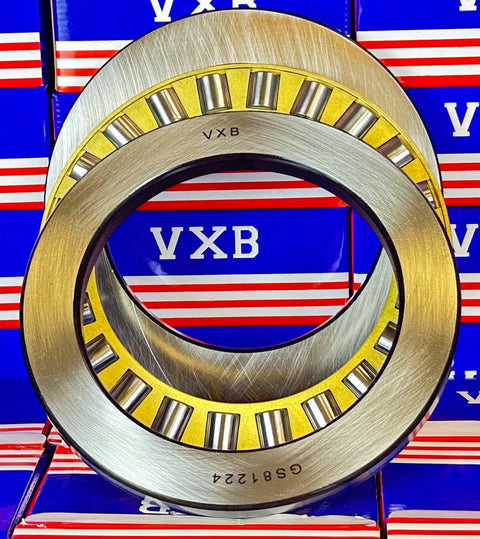

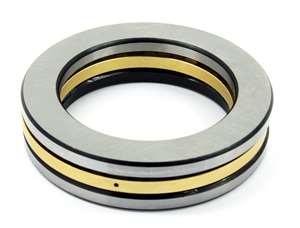

81224M Cylindrical Roller Thrust Bearing 120x170x39mm - Bronze Cage
$647.18 CAD
$873.68 CADyou save $226.50 CAD
SKU: 81224M
UPC: 0
UPC: 0
Type: Cylindrical Roller Thrust Bearings
Size: 120mm x 170mm x 39mm
Bearing Inner Diameter: 120mm
Bearing Outer Diameter: 170mm
Bearing Width: 39mm
Size: 120mm x 170mm x 39mm
Bearing Inner Diameter: 120mm
Bearing Outer Diameter: 170mm
Bearing Width: 39mm
81224M Cylindrical Roller Thrust Bearings Bronze Cage 120x170x39 mm
| 81224M Cylindrical Roller Bearing Bronze Cage 120mm x 170mm x 39mm |
81224M Cylindrical Roller BearingBronze Cageinner diameter is 120mmouter diameter is 170mm and width is 39mm.
- 81224M Cylindrical Roller Bearing
- Cylindrical Roller Bearing
- Cage: Bronze Cage
- Dimensions: 120mm x 170mm x 39mm/Metric
- ID (inner diameter)/Bore: 120mm
- OD (outer diameter): 170mm
- Width: 39mm
- Size: 120 x 170 x 39 mm
- Quantity: 1 Bearing
- Dynamic load rating Cr: 340000 N
- Static load rating Cor: 1120000 N
- Limiting speed: 2000 1/min
| d | D | T | D1 | d1 | r min | Ca | Coa | Cua | Ng | |
| 120 | 170 | 39 | 123 | 170 | 1.1 | 340000 | 1120000 | 111000 | 2000 | |
