NTA3244 Thrust Needle Roller Bearing 2" x 2-3/4" x 5/64"inch
UPC: 00193019306888
Type: Thrust Needle Roller Bearing
Size: 2" x 2 3/4" x 5/64" inch
Dynamic load rating: 5800 LBF
Static load rating: 32500 LBF

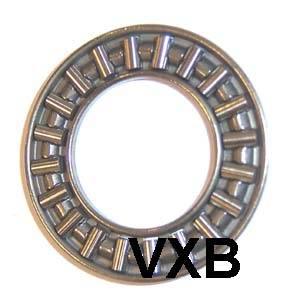

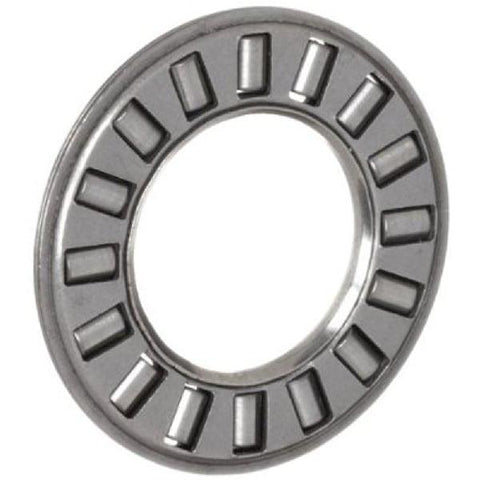

NTA3244 Thrust Needle Roller Bearing
✔️ 2" ID - High Load 5/64" Thick, One Bearing
The NTA3244 is a heavy-duty thrust needle roller bearing designed to handle strong axial loads in tight spaces. With a 2-inch inner diameter and just 5/64" thickness, it's perfect for applications like transmissions, gear assemblies, and rotary tables that need serious load support without taking up much room.
✅ Size: 2" ID x 2 3/4" OD x 5/64" Thickness
✅ Designed for high axial load capacity
✅ Compact, low-profile build
✅ Made for high-pressure rotating assemblies
✅ Sold as one bearing
Dimensions Table:
| Inner (ID) | Outer (OD) | Thickness |
|---|---|---|
| 2" | 2 3/4" | 5/64" |
✅ Dynamic load rating: 5,800 LBF
✅ Static load rating: 32,500 LBF
💡 What makes thrust needle roller bearings ideal for space-limited axial load support?
They deliver maximum strength in minimal space.
-
Handles high axial forces in rotating parts
-
Low height makes them ideal for compact designs
-
Common in automotive, gearboxes, and heavy equipment
-
Works great with matching washers like TC3244
If you’re building something that spins hard under load, the NTA3244 has your back. Add it to your cart and let your gear take the pressure like a pro.
