FYH Bearing 35mm Bore SB207 Axle Insert Ball Mounted Bearing
UPC: 00193019082751
Type: Mounted Axle Bearing
Quantity: One Bearing
Basic Load (Cr): 25,700 N
Basic Load (Cor): 15,400 N

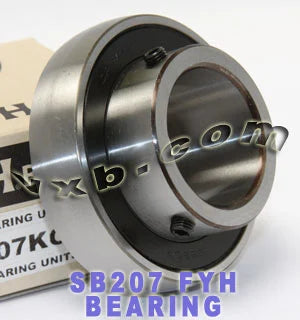

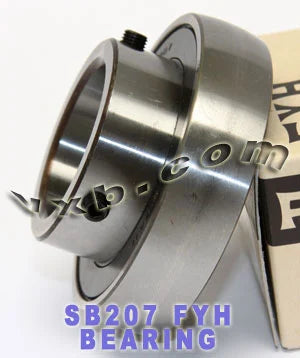

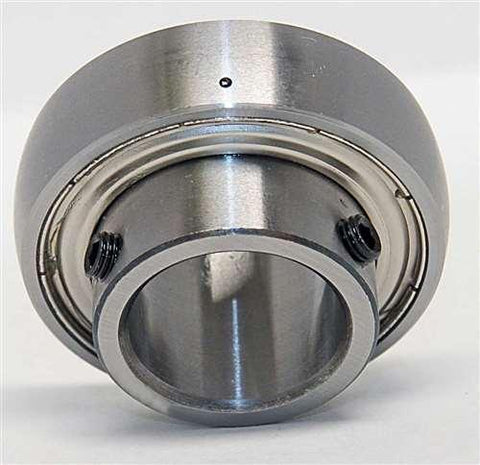

SB207 FYH Bearing Insert
✔️ 35mm Cylindrical Bore with Set Screws
The SB207 FYH is a mounted axle bearing insert designed with a 35mm cylindrical bore and set screws for secure shaft locking. Built for durability and smooth performance, it’s a reliable choice for agricultural equipment, conveyors, and industrial machinery. Pack includes 1 bearing.
âś… Model: SB207 FYH
âś… Type: Mounted axle bearing insert
âś… Bore (ID): 35mm
âś… Outer Diameter (OD): 72mm
âś… Width: 32mm
âś… Basic Dynamic Load (Cr): 25,700 N
âś… Basic Static Load (Cor): 15,400 N
âś… Quantity: 1 Bearing

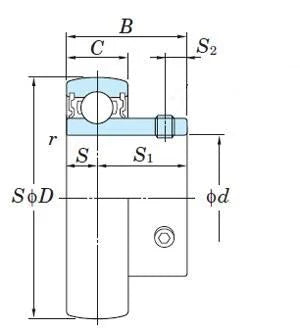

Dimensions (Metric)
| d (Bore) | D (OD) | B (Width) | C | r (min) | S | S1 | S2 |
|---|---|---|---|---|---|---|---|
| 35mm | 72mm | 32mm | 17mm | 1.1mm | 8.5mm | 23.5mm | 6mm |
đź’ˇ Why use FYH bearing inserts with set screws?
Set screw locking makes installation quick and reliable for many shaft applications.
-
Holds the shaft securely in place
-
Handles both radial and thrust loads effectively
-
Commonly used in mounted bearing housings and heavy-duty machinery
A solid insert for smooth and dependable operation—order the SB207 today and keep your equipment running steady.
