FYH Bearing UCF211-32 2" inch ID Square Flanged Mounted Bearing
UPC: 00193019078075
Type: Four bolt Flanged Bearing
Bolt Size: 5/8" inch
Basic Load (Cr): 43.4 KN
Basic Load (Cor): 29.4 KN

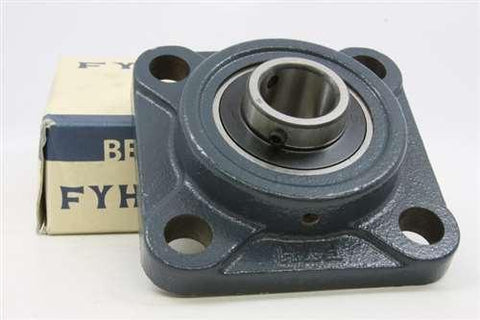

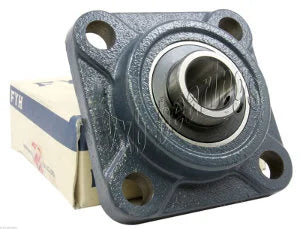

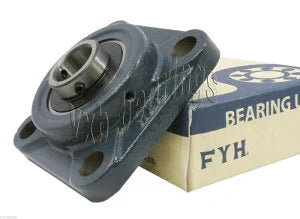

UCF211-32 FYH Flange Bearing Unit
✔️ 2" Four-Bolt Square Flange - Set Screw Lock, Heavy-Duty Mount
The UCF211-32 is a square flanged bearing unit from FYH with a 2" inner diameter and secure four-bolt mounting. Designed for rotating applications requiring accurate alignment, this heavy-duty unit includes a cylindrical bore with set screws and a solid cast iron housing for rugged performance.
âś… Pack size: 1 bearing unit
âś… Shaft diameter: 2 inches
âś… Mount style: Four-bolt square flange
âś… Locking type: Set screws
âś… Housing: Cast iron
âś… Bearing number: UC211-32
âś… Bolt size: 5/8 inch
âś… Dynamic load rating (Cr): 43.4 kN
âś… Static load rating (Cor): 29.4 kN
âś… Ideal for: Rotating drums, rollers, or precise mounted applications

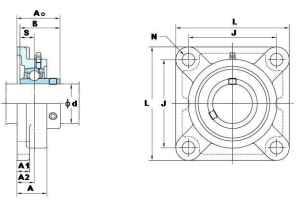

Dimensional Overview (inches):
| d | L | A | J | N | A1 | A2 | A0 | B | S |
|---|---|---|---|---|---|---|---|---|---|
| 2" | 6.375" | 1.6875" | 5.125" | 0.75" | 0.718" | 0.984" | 2.3125" | 2.188" | 0.875" |
đź’ˇ What is a four-bolt flange bearing like the UCF211-32 used for?
Flange bearings are perfect for mounting shafts perpendicular to surfaces, offering strong support and precise alignment.
Used in:
-
Rotating drums and rollers
-
Processing equipment
-
Packaging and textile machinery
-
Agricultural and industrial machinery
Strong, steady, and easy to align - bolt this FYH flange unit in place and keep your system spinning smooth!
