FYH Bearing UCP211-32 2" inch ID Pillow Block Mounted Bearing
UPC: 00193019076279
Type: Mounted Ball Bearing
Shaft Dia: 2" inch
Bolt Size: 5/8" inch
Bearing No: UC211-32

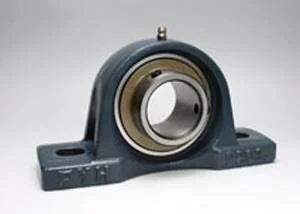

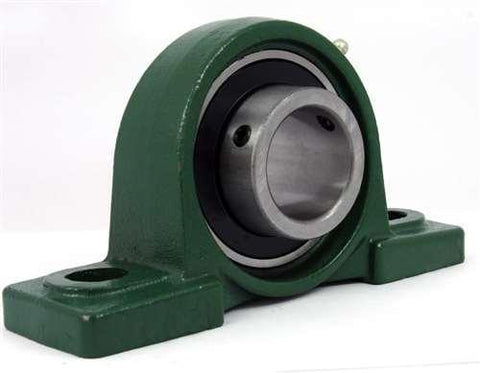

UCP211-32 FYH Pillow Block Bearing
✔️ 2" Inner Diameter - Set Screw Mount, Cast Housing
The UCP211-32 is a robust mounted pillow block bearing unit from FYH, designed for heavy-duty support with a 2" shaft bore. Featuring a cast iron housing and cylindrical bore with set screws, it's ideal for handling radial and axial loads in industrial machinery and conveyor systems.
✅ Pack size: 1 bearing unit
✅ Shaft diameter: 2 inches
✅ Mount type: Pillow block with set screws
✅ Housing: Cast iron for shock and load resistance
✅ Bearing number: UC211-32
✅ Bolt size: 5/8 inch
✅ Dynamic load rating (Cr): 43.4 kN
✅ Static load rating (Cor): 29.4 kN
✅ Brand: FYH
Dimensional Overview (inches):
| d | H | L | A | J | N | N1 | H1 | H2 | L1 | B | S |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2" | 2.5" | 8.625" | 2.375" | 6.718" | 0.781" | 0.875" | 0.75" | 4.906" | 2.75" | 2.188" | 0.875" |
💡 What is a pillow block bearing like the UCP211-32 used for?
Pillow block bearings provide sturdy support and smooth shaft rotation for mounted systems.
Ideal applications include:
-
Industrial conveyors and assembly lines
-
Agricultural and packaging machinery
-
HVAC and fan systems
-
Material handling equipment
Built to handle tough loads and daily duty - mount this FYH unit and count on reliable performance in every rotation!
