NB
NB SM40G-OP 40mm Slide Bush Ball Linear Motion Bearing
$338.81 CAD
$457.39 CADyou save $118.58 CAD
SKU: Kit19555
UPC: 00193019111680
UPC: 00193019111680
Item: SM40G-OP Bearing
Type: Linear Slide Bush
Retainer Material: Resin
Shaft Diameter: 40mm
Number of Ball Circuits: 5
Type: Linear Slide Bush
Retainer Material: Resin
Shaft Diameter: 40mm
Number of Ball Circuits: 5
| SM40G-OP Type Open: Slide Bush Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |

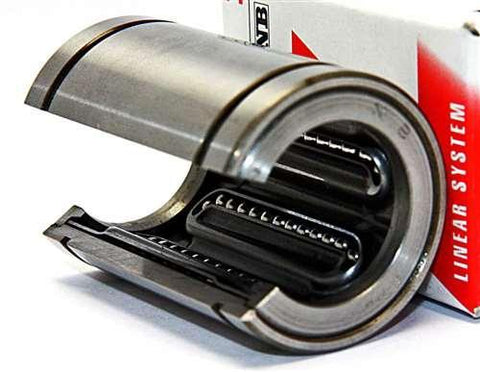

SM40G-OP Linear Slide Bush, bearing is Open, Retainer material is resin, bearing is a high accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|
| Major dimensions | Eccentricity | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | B | W | D1 | h | Degree | |||||
| mm | tolerance | mm | tolerance | mm | tolerance | mm | tolerance | |||||
| 40 | 0-12 | 60 | 0-19 | 80 | 0-0.3 | 60.5 | 0-0.3 | 2.1 | 57 | 3 | 50 | 20 |
