NB SMF16GW 16mm Slide Bush Miniature Linear Motion Bushings Bearing
$205.56 CAD
$277.50 CADyou save $71.94 CAD
SKU: Kit20187
UPC: 00193019116791
UPC: 00193019116791
Item: SMF16GW Bearing
Type: Linear Miniature Slide Bush
Retainer Material: Resin
Bearing Inner Diameter: 16mm
Quantity: One Bearing
Type: Linear Miniature Slide Bush
Retainer Material: Resin
Bearing Inner Diameter: 16mm
Quantity: One Bearing

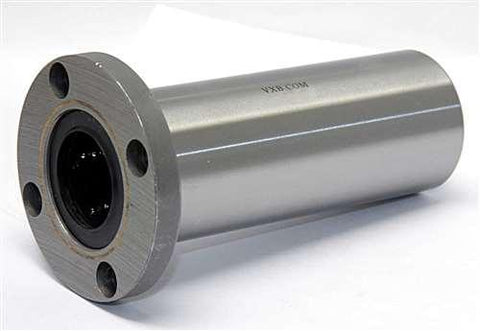

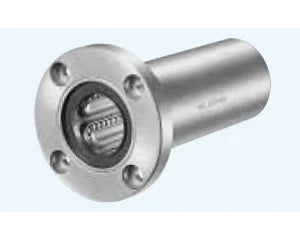

| SMF16GW Round Flange Double Wide Type:Miniature Slide Bush Made in Japan:NB Linear Systems Nippon Bearing Miniature Linear Systems |
SMF16GW Round Flange Double Wide Miniature Linear Slide Bush, The retainer material is resin, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
|

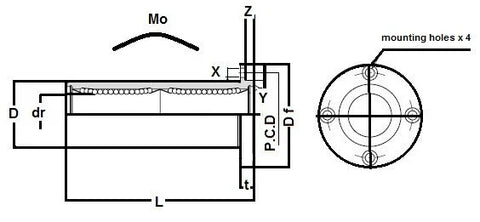

| Major Dimensions | ||||||||
|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | t | P.C.D | X x Y x Z | ||
| mm | tolerance | mm | tolerance | |||||
| 16 | 0-9 | 28 | 0-16 | 37 | 48 | 6 | 38 | 4.5 x 7.5 x 4.1 |
