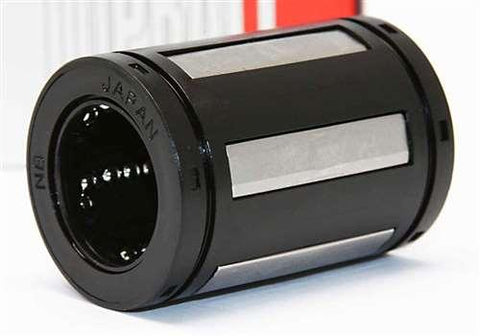

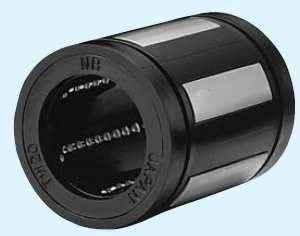

NB TW24 NB Self Aligning Ball Bushing 1-1/2" Linear Motion Bearing
UPC: 00193019133453
Type: Linear Motion Ball Bushing
Ball circuit: 5
Size: 1 1/2" x 2 3/8" x 3" inch
Bearing Inner Diameter: 1 1/2" inch
TW24 Self-Aligning Top Ball Linear Bushing - High Load
✔️ 1 1/2" ID x 2 3/8" OD x 3" Length - Made in Japan by NB Linear Systems
The TW24 Top Ball bushing is a high-load linear motion bearing built for long life and smooth tracking. Manufactured in Japan by NB Systems, it features a 1 1/2" inch bore and supports up to 27x the travel life of standard bushings. With five internal ball circuits and self-aligning capability, it’s ideal for CNC machines, automated assemblies, and precision-guided motion systems.
✅ Pack size: 1 bearing
✅ Type: Self-aligning linear motion ball bushing
✅ Series: Top Ball - High load standard type
✅ Inner diameter (ID): 1 1/2" inch
✅ Outer diameter (OD): 2 3/8" inch
✅ Length: 3" inch
✅ Ball circuits: 5
✅ Dynamic load rating: 6584 N
✅ Static load rating: 8230 N
✅ Built-in seals for debris protection
✅ Made in Japan by NB (Nippon Bearing)
Dimensions Table:
| Inner (ID) | Outer (OD) | Length |
|---|---|---|
| 1 1/2" | 2 3/8" | 3" |
💡 Why choose a self-aligning linear ball bushing like the TW24?
Self-aligning bushings help compensate for shaft misalignment, reduce wear, and extend system life - all while delivering precision motion.
-
Built for ultra-high load and extended travel cycles
-
Automatically adjusts to shaft deflection or misalignment
-
Used in robotics, machine tools, and motion automation
-
Long-lasting performance with minimal maintenance
If your project needs serious linear support, the TW24 Top Ball is the no-compromise choice. Add it to your setup and move with confidence!
