NBK Japan MFBS-25 8mm to 8mm Bellows-type Flexible Coupling stainless
NBK Japan MFBS-25 8mm to 8mm Bellows-type Flexible Coupling stainless
NBK

NBK Japan MFBS-25 8mm to 8mm Bellows-type Flexible Coupling stainless


$325.48 CAD $439.40 CADyou save $113.92 CAD
SKU: MFBS-25-8mm-8mm
UPC: 0
Coupling Bore 1 Diameter:8mm
Coupling Bore 2 Diameter:8mm
Coupling Length: 36.5
Coupling Outer Diameter:25


NBK Japan MFBS-25 8mm to 8mm Bellows-type Flexible Coupling stainless
NBK Japan MFBS-25 8mm to 8mm
stainless steel Bellows-type Flexible Coupling


NBK Japan MFBS-25 8mm to 8mm Bellows-type Flexible Coupling stainless, this is a bellows type flexible coupling. The bellows allows eccentricity, angularmisalignment, and end-play.

  • Coupling Bore 1 Diameter: 8mm
  • Coupling Bore 2 Diameter: 8mm
  • Coupling Length: 36.5
  • Coupling Outer Diameter:25
  • Material: Stainless Steel
  • Zero Backlash
  • High torsional rigidity
  • High Torque
  • Constant Velocity
  • Simple Design
  • Made in Japan
  • Quantity: One

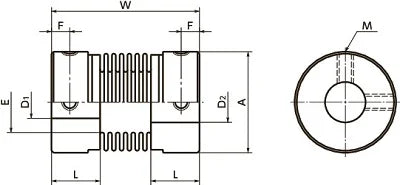

A L W E F M Wrench Torque(N-m)
25mm 12mm 36.5mm 15mm 4.5mm M4 1.7
