NBK
NBK Japan BRUHP-5-P Hexagon Head Screw Type Ball Rollers for Upward, Downward & Sideward Facing Applications
$104.86 CAD
$141.56 CADyou save $36.70 CAD
SKU: BRUHP-5-P-NBK
UPC: 0
UPC: 0
Item: BRUHP-5-P
Hexagon Head Type Ball Transfer unit
Main Body: PEEK/Light Brown
Main Ball: PEEK/Light Brown
Hexagon Head Type Ball Transfer unit
Main Body: PEEK/Light Brown
Main Ball: PEEK/Light Brown
| BRUHP-5-P 5mm Hex Head Screw Type Ball Transfer Unit for Upward, Downward and Sideward Facing Applications, Single Screw. |
BRUHP-5-P has a drain hole and is intended for food production lines and other applications that require cleaning. BRUHN-5-N is intended for applications that require cleanliness, heat resistance, or chemical resistance, such as FPD production equipment and semiconductor devices.

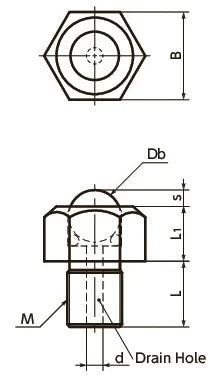

| Part Number | M | L | L1 | s | Db | B | d | Withstand Load (N) |
| BRUHP-5-P | 5mm | 6mm | 5mm | 1.5mm | 4.76mm | 8mm | 1.5mm | 2 |
