NNCL4934CV P5 Double Row Full Complement Cylindrical Bearing
NNCL4934CV P5 Double Row Full Complement Cylindrical Bearing
VXB

NNCL4934CV P5 2-Row Full Complement Cylindrical Bearing


$1,250.60 CAD $1,688.31 CADyou save $437.71 CAD
SKU: FULL-COMP-NNCL-4934-CV
UPC: 00193019197950
Item: NNCL4934CV P5
Type: Double Row Full Complement Cylindrical Roller Bearing
Dimensions: 170mm x 230mm x 60mm
Brand: VXB
Quantity: One Bearing

NNCL4934CV P5
Double Row Full Complement Cylindrical Roller Bearing

NNCL4934CV Bearing is a double row full Complement cylindrical roller bearing, NNCL 4934 CV has no cage, that's why it incorporates a maximum number of rollers. Double row full complement cylindrical roller bearings are suitable for very heavy radial loads..

  • NNCL 4934 CV Bearing
  • Double Row Full Complement Cylindrical Roller Bearing
  • Dimensions: 170mm x 230mm x 60mm/Metric
  • Brand: VXB
  • Quality: P5=ABEC 5
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 457,000 N
  • Static load rating Cor: 950,000 N
  • Fatigue load limit: 100,000 N
  • Operating temperature: Suitable for -30 to +120 Celsius

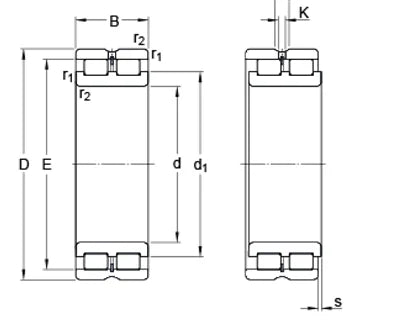

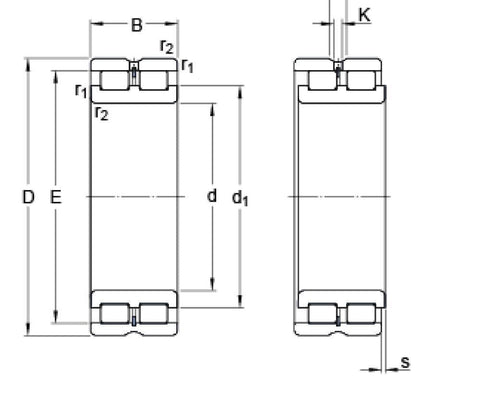

Dimensions (mm)
d D B d1 E b1 K s(max) r(min) r1,2(min)
70 110 54 53 215.08 7 4 4 0.6 2
