RBW8 NB 1/2" Resin Block Unit Motion Linear Bearing

RBW8 NB Resin Block Slide Unit
✔️ 1/2" Inner Contact - Made in Japan - NB Linear Systems

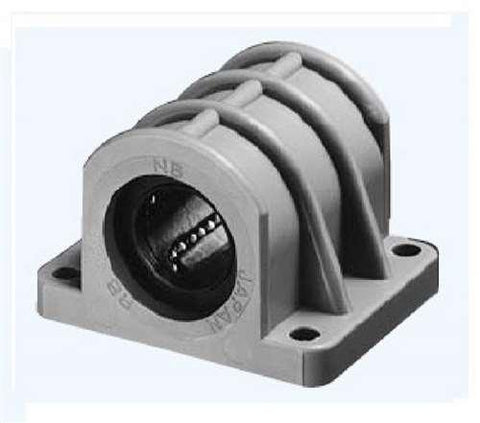

The RBW8 from NB (Nippon Bearing) is a resin block-type linear slide unit designed for precision linear motion using a 1/2" shaft. It’s built with a resin retainer for lightweight performance and quieter operation, great for compact setups in automation and industrial machines.

✅ Inner Contact Diameter: 1/2" inch

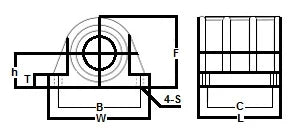

✅ Outer Height (H): 0.687"
✅ Length (L): 1.5937"
✅ Width (W): 2.000"
✅ Bolt Pattern (B x C): 1.688" x 1.000"
✅ Bolt Hole Diameter (S): 1.57"
✅ Mounting Hole Centers (F x T): 1.2500" x 0.3437"
✅ Retainer Material: Resin
✅ Country of Origin: Japan
✅ Brand: NB (Nippon Bearing)
✅ Quantity: 1 Unit
✅ Dynamic Load Rating (Cr): 510 N
✅ Static Load Rating (Cor): 784 N

💡 What's the advantage of resin block linear bushings?
These types of blocks are perfect for applications where:

• Lightweight parts help reduce system inertia

• Quieter operation is needed (compared to metal retainers)

• You want easy installation on inch-size shafts

• Made-in-Japan precision ensures top performance in compact systems

If your project needs a smooth, strong, and lightweight linear motion solution, this little guy is a solid pick. Don't let it slide away, order now!
