NB

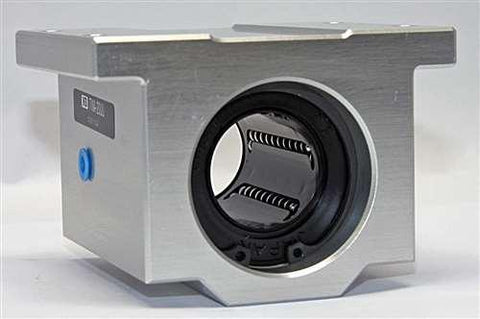

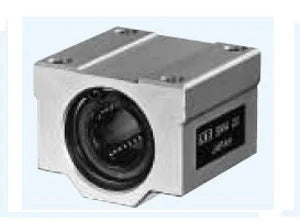

SMA16GUU NB 16mm Slide Bush Bushings Miniature Motion Linear Bearing
$123.71 CAD
$167.00 CADyou save $43.29 CAD
SKU: Kit21188
UPC: 00193019124932
UPC: 00193019124932
Item: SMA16GUU NB Bearing
Type: Linear Ball Bushing
Shaft Diameter: 16mm
Quantity: One Bearing
Dynamic load rating Cr: 774 N
Type: Linear Ball Bushing
Shaft Diameter: 16mm
Quantity: One Bearing
Dynamic load rating Cr: 774 N
| SMA16GUU NB Block Type:Slide Unit Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
SMA16GUU NB Block Slide Unit, The inner diameter is 16mm, Bearing is seals on both sides, The retainer material is resin, Bearing is a high accuracy grade linear bushings, Series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|

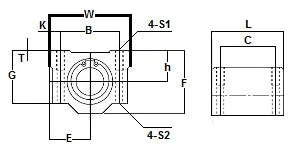

| Outer Dimensions | Mounting Dimensions | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| h | E | W | L | F | G | T | B | C | K | S1 | S2 |
| 19 | 25 | 50 | 44 | 38.5 | 32.5 | 9 | 36 | 34 | 7 | M5 | 4.3 |
