NB

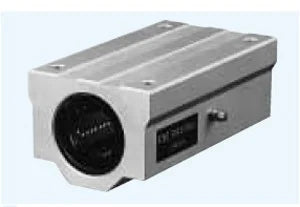

SMA5GW NB 5mm Slide Bush Bushings Miniature Motion Linear Bearing
$199.85 CAD
$269.79 CADyou save $69.94 CAD
SKU: Kit21198
UPC: 00193019125038
UPC: 00193019125038
Item: SMA5GW NB Bearing
Type: Linear Ball Bushing
Shaft Diameter: 5mm
Quantity: One Bearing
Dynamic load rating Cr: 167 N
Type: Linear Ball Bushing
Shaft Diameter: 5mm
Quantity: One Bearing
Dynamic load rating Cr: 167 N
| SMA5GW NB Double Wide Block Type:Slide Unit Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
SMA5GW NB Block Double Wide Slide Unit, The 5mm inner diameter, Bearing is a high accuracy grade linear bushings, The retainer material is resin, Series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|

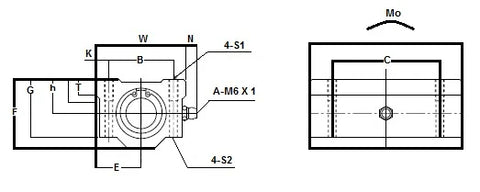

| Outer Dimensions | Mounting Dimensions | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| h | E | W | L | F | G | B | C | K | S1 |
| 7 | 11 | 22 | 33 | 14 | 11 | 16 | 12 | 3 | M3 |
