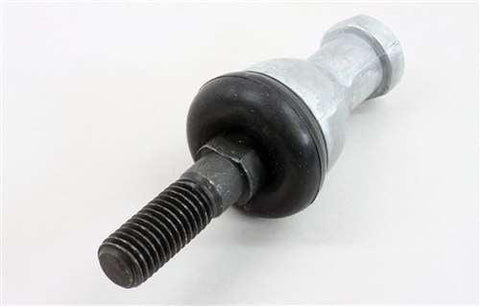

SQZ6 Straight Shape Ball Joint Rod End Bearing
SQZ6 Straight Shape Ball Joint Rod End Bearing
SQZ6 Straight Shape Ball Joint Rod End Bearing
VXB

SQZ6 Straight Shape Ball Joint Rod End Bearing


$28.54 CAD $38.52 CADyou save $9.98 CAD
SKU: SQZ6
UPC: 00193019014721







Straight Shape Ball joint Rod end bearing
SQZ6

straight ball end joint bearing SQZ6 The Rod End is a spherical slide bearing incorporating a spherical inner ring with precision and hardness equivalent to that of steel ball bearings. It provides very smooth rotating and oscillating motion without play.

  • SQZ6(Ball joint rod ends) Bearing
  • Quantity: 1 Bearing
  • Lubrication: Grease
  • Inside Diameter:6 mm
  • Outside Diameter:20 mm
  • Thickness:55.2 mm
  • load rating:3.7

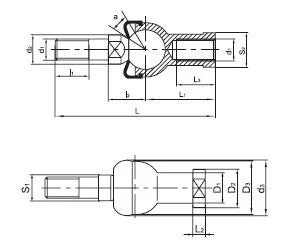

Type d d1 d2
min 		d3
max 		l1
min 		l2 S1 L
max 		L1 L2
max 		L3
min 		D1
max 		D2
max 		D3
max 		S2 a
SQZ6 6 M6X1 10 20 11 12.2 8 55.2 28 5 15 10 13 20 11 15
