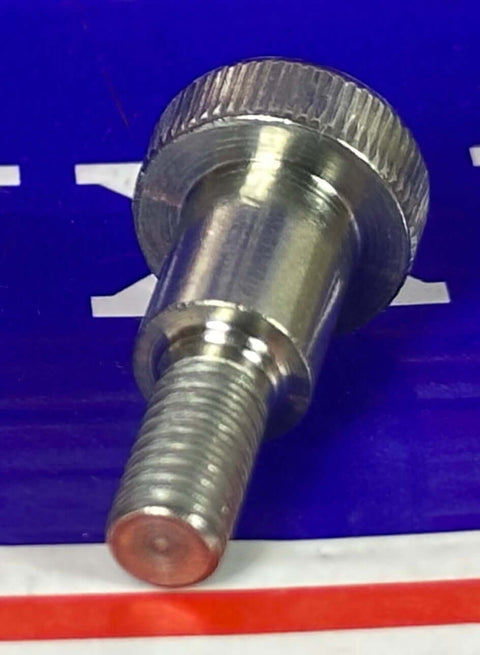

SSM4-5MM-10MM Stainless Steel 304 Hex Socket Knurled Head Shoulder Screw Positioned shaft Stripper Bolts

SSM4-5MM-10MM Hex Socket Knurled Head Screw
✔️ Stainless Steel 304 - M4 x 5mm Shaft - 10mm Length

The SSM4-5MM-10MM is a precision knurled head shoulder screw made from 304 stainless steel, ideal for securely fastening panels, guides, or bearing components. Its tamper-resistant hex socket design and anti-loss shape make it perfect for parts that are regularly removed and reinstalled.

✅ Pack size: 1 screw

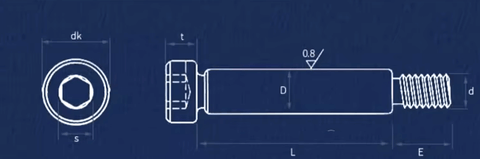

✅ Thread size: M4 × 0.7mm pitch
✅ Shaft diameter (D): 5mm
✅ Overall length (L): 10mm
✅ Thread length (t): 3.50mm
✅ Head diameter (dK): 9mm
✅ Head height (E): 8mm

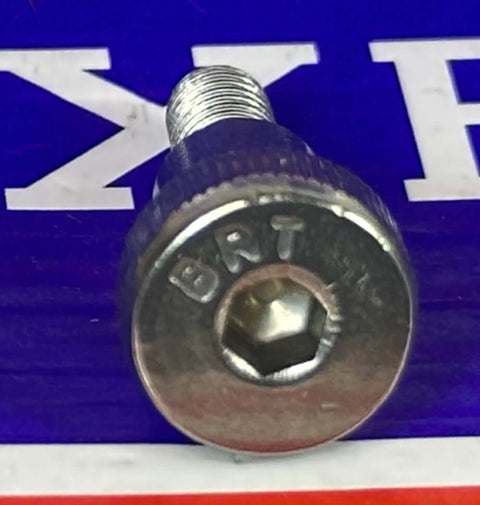

✅ Hex socket size (S): 3mm
✅ Material: Stainless steel 304
✅ Type: Hexagon socket knurled head shoulder screw
✅ Application: Roller bearing mounts, inspection covers, guide fixtures

💡 Why choose hex socket knurled screws for removable panels and fixtures?
These screws provide a firm grip and secure hold while allowing fast, tool-assisted removal and reinsertion.

Why they’re a great fit:

• Knurled head makes for easy grip and alignment

• Hex socket resists stripping and ensures torque control

• 304 stainless steel provides excellent rust resistance

• Great for machine guards, control panels, and assembly jigs

Built to hold tight and release easy - grab this stainless steel knurled screw and upgrade your assembly’s reliability!
