SSM6-50 Stainless Steel 304 Hex lobular Button Head Cap Screws - Pin
UPC: 0

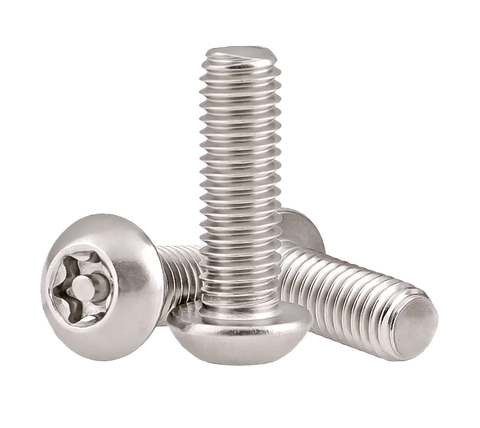

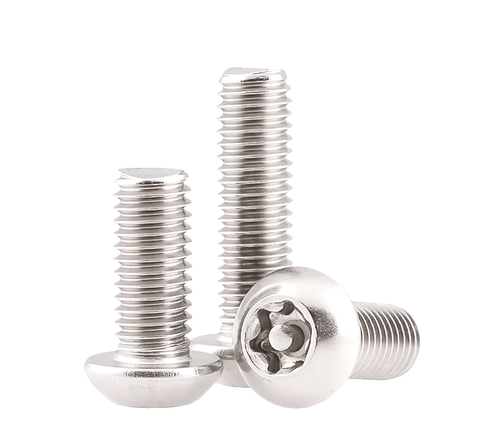

Stainless Steel M6 x 50mm Security Screw
✔️ Hexa Lobular Button Head with Pin - Tamper-Resistant
This M6 x 50mm stainless steel button head screw is designed with a center pin in the hexa lobular socket, offering tamper resistance for secure assemblies. Made from 304 stainless steel, it's perfect for applications needing both corrosion resistance and security, like enclosures, panels, or equipment mounts. Sold as one screw.
✅ Pack size: 1 screw
✅ Thread diameter: M6
✅ Thread pitch: 1mm
✅ Length: 50mm
✅ Head type: Button head with center pin
✅ Drive style: Hexa lobular (tamper-resistant)
✅ Head diameter (DK): 10.2mm
✅ Head height (K): 3.8mm
✅ Socket depth (H): 1.8mm
✅ Material: 304 stainless steel
✅ Requires specialty hexalobular tool for installation

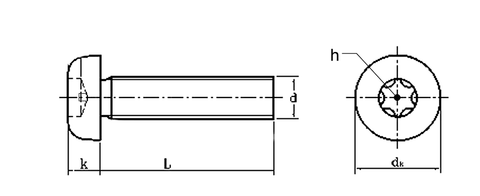

Dimension Table:
| Thread Size | Length | DK (Head Ø) | K (Head Height) | H (Socket Depth) |
|---|---|---|---|---|
| M6 | 50mm | 10.2mm | 3.8mm | 1.8mm |
💡 When should you use tamper-resistant hexa lobular screws with center pins?
They're perfect for preventing unauthorized removal:
-
Adds an extra level of security for public or sensitive installs
-
Stainless steel resists rust and holds up outdoors
-
Ideal for kiosks, panels, machine guards, or fixtures
-
Specialty tool required helps deter casual tampering
Tough, secure, and built to stay put, order one now and protect your setup the smart way!
