SWD10 NB Ball Bushing 5/8"inch Open Block Linear Motion
$199.85 CAD
$269.79 CADyou save $69.94 CAD
SKU: SWD10-NB
UPC: 00193019132852
UPC: 00193019132852
Item: SWD10 Bearing
Type: Linear Ball Bushing
Shaft diameter: 5/8" inch
Quantity: One Bearing
Dynamic Load Rating Cr: 540 N
Type: Linear Ball Bushing
Shaft diameter: 5/8" inch
Quantity: One Bearing
Dynamic Load Rating Cr: 540 N

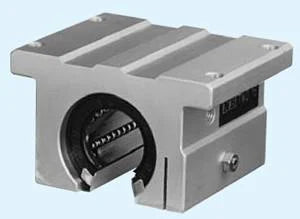

| SWD10 Slide Unit Block Type Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
5/8" Slide Unit Block Type (Inch Series), measures an inner diameter of 5/8" inch, bearing has steel retainer, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|

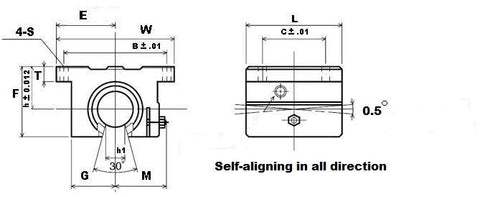

| Major dimensions | Mounting dimensions | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| h | E | W | L | F | T | G | M | h1 | B | C | S |
| 7/8" | 1-1/4" | 2-1/2" | 1-3/4" | 1-3/8" | 9/32" | 7/8" | 1-5/32" | 3/8" | 2-1/8" | 1" | 5/32" |
