NB
TRKC30GUU NB 30mm Slide Bush Bushings Motion Linear Bearing
$810.88 CAD
$1,094.68 CADyou save $283.80 CAD
SKU: Kit21147
UPC: 00193019124543
UPC: 00193019124543
Item: TRKC30GUU NB Bearing
Type: Linear Slide Bush
Bearing Inner Diameter: 30mm
Retainer Material: resin
Quantity: One Bearing
Type: Linear Slide Bush
Bearing Inner Diameter: 30mm
Retainer Material: resin
Quantity: One Bearing
| TRKC30GUU NB Triple Wide Intermediate Position Square Flange Slide Bush Made in Japan:NB Linear Systems |
TRKC30GUU NB Triple Wide Intermediate Position Square Flange Miniature Slide Bush, The retainer material is resin, It is seals on both sides, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
|

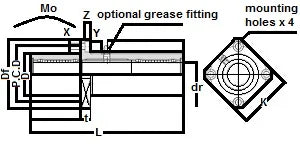

| Major Dimensions | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | t | P.C.D | X x Y x Z | |||
| mm | tolerance | mm | tolerance | ||||||
| 30 | 0-18 | 52 | 0-30 | 182 | 82 | 10 | 67 | 6.6 x 11 x 6.1 | |
