TRKC6UU NB 6mm Slide Bush Bushings Miniature Motion Linear Bearing
$289.32 CAD
$390.57 CADyou save $101.25 CAD
SKU: Kit21115
UPC: 00193019124222
UPC: 00193019124222
Item: TRKC6UU NB Bearing
Type: Linear Slide Bush
Bearing Inner Diameter: 6mm
Retainer Material: steel
Quantity: One Bearing
Type: Linear Slide Bush
Bearing Inner Diameter: 6mm
Retainer Material: steel
Quantity: One Bearing
| TRKC6UU NB Triple Wide Intermediate Position Square Flange Slide Bush Made in Japan:NB Linear Systems |
|
TRKC6UU NB Triple Wide Intermediate Position Square Flange Miniature Slide Bush, The retainer material is steel, It is seals on both sides, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
|

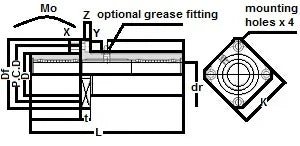

| Major Dimensions | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | t | P.C.D | X x Y x Z | |||
| mm | tolerance | mm | tolerance | ||||||
| 6 | 0-12 | 15 | 0/-18 | 51 | 32 | 5 | 24 | 3.5 x 6 x 3.1 | |
