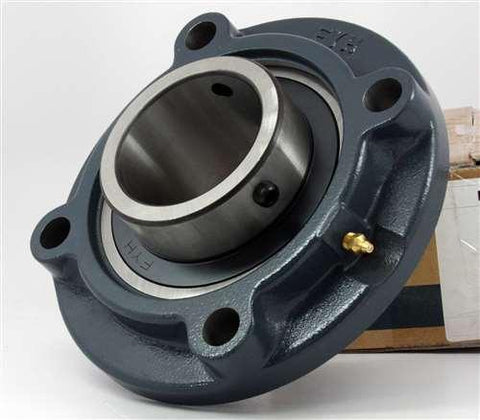

UCFC-207-22 Flange Cartridge Bearing 1-3/8" Bore Mounted Bearing
$76.13 CAD
$102.76 CADyou save $26.63 CAD
SKU: kit902
UPC: 00193019288207
UPC: 00193019288207
Item: UCFC-207-22 Bearing
Type: Flange Cartridge Unit
Basic Load (Cr): 25.7 KN
Basic Load (Cor): 15.4 KN
Bolt Size: 7/16
Type: Flange Cartridge Unit
Basic Load (Cr): 25.7 KN
Basic Load (Cor): 15.4 KN
Bolt Size: 7/16
| UCFC-207-22 Flange Cartridge Unit 1 3/8" Inner Diameter Bearing |
UCFC-207-22 Flange Cartridge Unit, Set Screw Type, the inner Diameter is 1 3/8" inch.
|

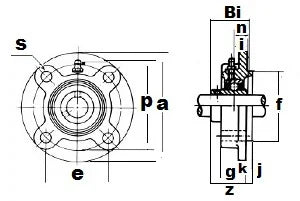

| Dimensions (inch) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| a | p | e | i | s | j | k | g | f | z | Bi | n |
| 5-5/16" | 4-23/64" | 3-1/16" | 7/16" | 35/64" | 5/16" | 11/32" | 1-1/32" | 3.54" | 1-7/16" | 1-11/16" | 11/16" |
