VXB

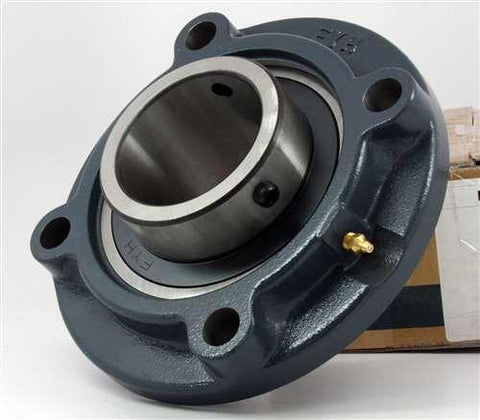

UCFC212-39 Flange Cartridge Bearing 2 7/16"inch Bore Mounted Bearing
$220.79 CAD
$298.06 CADyou save $77.27 CAD
SKU: Kit18437
UPC: 00193019262979
UPC: 00193019262979
Item: UCFC212-39 Bearing
Type: Flange Cartridge Unit
Basic Load Dynamic (Cr): 52,400 N
Basic Load Static (Cor): 36,200 N
Bolt Size: 5/8" Inch
Type: Flange Cartridge Unit
Basic Load Dynamic (Cr): 52,400 N
Basic Load Static (Cor): 36,200 N
Bolt Size: 5/8" Inch
| UCFC212-39 Flange Cartridge Unit 2 7/16" Inch Inner Diameter |
UCFC212-39 Flange Cartridge Unit, Set Screw Type, the inner Diameter is 2 7/16" Inch.
|

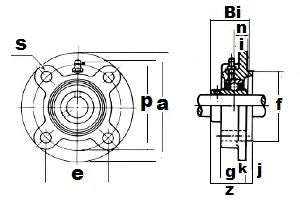

| Dimensions (Inches) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| a | p | e | i | s | j | k | g | f | z | Bi | n |
| 7-11/16" | 6-19/64" | 4-29/64" | 43/64" | 3/4" | 15/32" | 19/32" | 1-27/64" | 5-5/16" | 2-7/32" | 2-17/32" | 1" |
