VXB

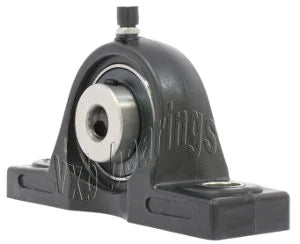

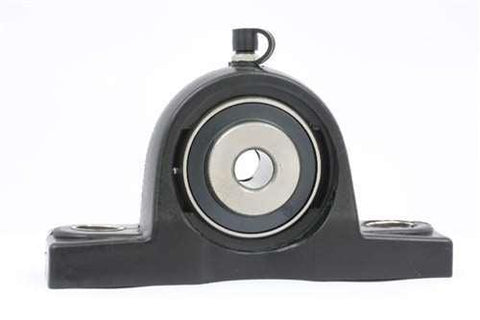

UCPPL205-16 1"inch Thermoplastic Pillow Block Mounted Bearing
$97.06 CAD
$131.03 CADyou save $33.97 CAD
SKU: Kit17708
UPC: 00193019234518
UPC: 00193019234518
Item: UCPPL205-16 Bearing
Type: Thermoplastic Pillow Block Mounted Bearing
Material: Thermoplastic
Shaft Diameter: 1" Inch
Bolt Size: 3/8" inch
Type: Thermoplastic Pillow Block Mounted Bearing
Material: Thermoplastic
Shaft Diameter: 1" Inch
Bolt Size: 3/8" inch
| UCPPL205-16 Thermoplastic Pillow Block 1" Inch Inner Diameter |
UCPPL205-16 Thermoplastic Pillow Block, bearing is made from Thermoplastic, Inner Diameter is 1" Inch.
|

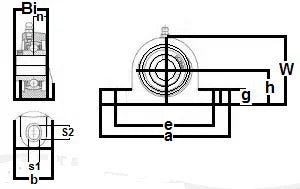

| Dimensions (inch) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| h | a | e | b | s1 | s2 | g | W | Bi | n |
| 1-7/16" | 5-1/2" | 3-61/64" | 1-1/2" | 7/16" | 35/64" | 37/64" | 2-364" | 1-21/64" | 9/16" |
