5207 Nachi Double rangée Roulement à contact angulaire 35x72x27 fabriqué au Japon
5207 Nachi Double rangée Roulement à contact angulaire 35x72x27 fabriqué au Japon
5207 Nachi Double rangée Roulement à contact angulaire 35x72x27 fabriqué au Japon
Nachi

5207 Nachi à 2 rangées de roulement à contact angulaire 35x72x27 fabriqué au Japon


$125.00 CAD $168.75 CADyou save $43.75 CAD
SKU: Kit10049
UPC: 00193019085554
Item: 5207 Nachi Ball Bearing
Type: Nachi Double Row Angular Ball Bearing
Closures: Open
Dimensions: 35mm x 72mm x 27mm/Metric
ID (inner diameter)/Bore: 35mm

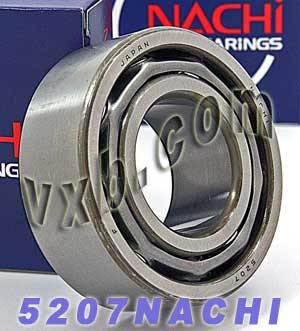

5207 Nachi Angular Ball Bearing
35mm x 72mm x 27mm
Made in Japan

5207 Nachi Double Row Angular Ball Bearing, Made in Japan, inner diameter is 35mm, outer diameter is 72mm and width is 27mm.

  • 5207 Nachi Ball Bearing
  • Nachi Double Row Angular Ball Bearing
  • Fermetures : Ouvert
  • Dimensions: 35mm x 72mm x 27mm/Metric
  • ID (diamètre intérieur)/Alésage : 35 mm
  • DE (diamètre extérieur) : 72 mm
  • Largeur : 27 mm
  • Size: 35 x 72 x 27 mm
  • Quantité : 1 roulement
  • Dynamic load rating Cr: 40,000 N
  • Static load rating Cor: 29,500 N
  • Limitation de la vitesse :
    • Grease Lubrication: 7,000 RPM
    • Oil Lubrication: 9,500 RPM
  • Fabriqué au Japon

The construction of this type ball bearing is similar to the adjacent, BACK-TO-BACK mounting of two Single-row Angular Contact ball bearings. Because fewer balls can be inserted per row compared to Single-row Angular Contact ball bearings, a Double-row Angular Contact ball bearing will have less load capacity than an equivalent size/series BACK-TO-BACK set of two Single-row Angular Contact ball bearings. This bearing type can sustain radial, moment and bi-directional axial loads.
