NB
NB SW4WUU 1/4" Bagues à rotule double largeur linéaire
152,27 $ CAD 205,55 CADVous économisez 53,28 $ CAD
SKU: Kit8073
UPC: 00193019127056
UPC: 00193019127056
Item: SW4WUU Bearing
Type: NB Linear Systems ball bushing
Shaft Diameter: 1/4" Inch
Dynamic load rating Cr: 353 N
Static load rating Cor: 530 N
Type: NB Linear Systems ball bushing
Shaft Diameter: 1/4" Inch
Dynamic load rating Cr: 353 N
Static load rating Cor: 530 N
| SW4WUU:Made in Japan:NB Linear Systems Double Wide Type Nippon Bearing Linear Systems |
|

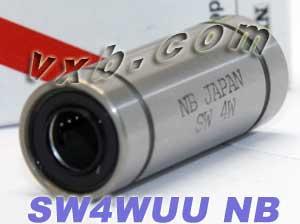

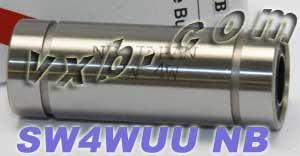

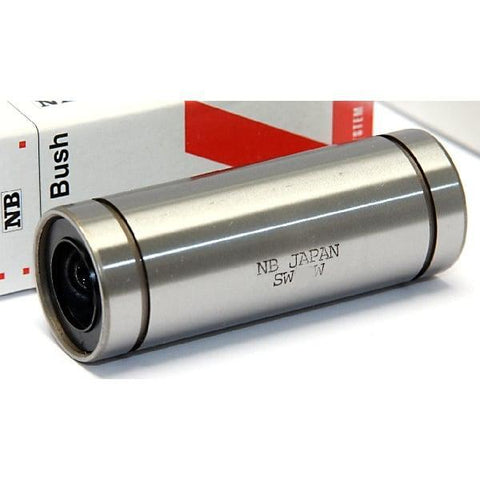

SW4WUU 1/4" Bore linear motion ball bushings/bearings, the inner diameter(bore) is 1/4" inch dimensions with steel retainer, bearing is a high accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|
|
| |||||
|---|---|---|---|---|---|

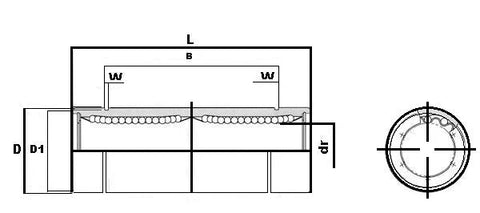

| dr | D | L | B | W | D1 |
| 1/4" | 1/2" | 1-3/8" | 1.022" | 0.039" | 15/32" |
