AS8 One-Way 8x24x8mm Bearing Support Required Backstop Clutch


76,13 $ CAD 102,76 CADVous économisez 26,63 $ CAD
SKU: ONE-WAY-AS8_1
UPC: 00193019309575
Item: AS8
Type: One Way Clutch
Applications: Overrunning, Indexing, Backstopping
Dimensions: 8mm x 24mm x 8mm/metric
Inner Diameter: 8mm

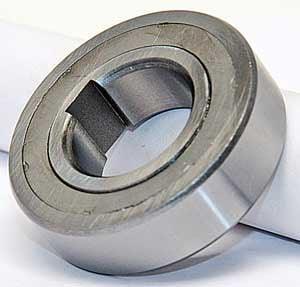

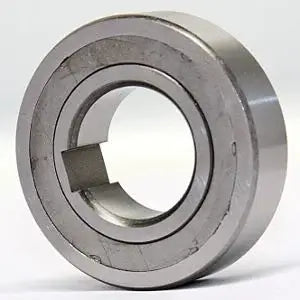

AS8 One Way Clutch
8mm x 24mm x 8mm
One Clutch Bearing


AS8 is a one-way clutch, that is used for Overrunning, Indexing and Backstopping, this type is non-bearing supported, you will need one of the 628 bearings to support it, One way Bearing Sprag/Clutch Freewheel and also called as Backstops. AS8 is used in any application that requires one direction rotation, such as mining, hydraulic, textile, printing and washing machines, conveyor systems that carry products to a higher level should not be reversed because of gravity during any power shortage.
  • AS8 Clutch
  • Embrayage unidirectionnel
  • Applications : Débordement, indexation, backstop
  • Dimensions: 8mm x 24mm x 8mm (Metric)
  • Diamètre intérieur : 8 mm
  • Diamètre extérieur : 24 mm
  • Largeur : 8 mm
  • Couple : 5,4 TKN
  • Couple maximal : 0,36 TR
  • Dépassement de la course intérieure : 3 500 tr/min
  • Dépassement de course extérieur : 5 200 tr/min
  • Quantité : Une embrayage

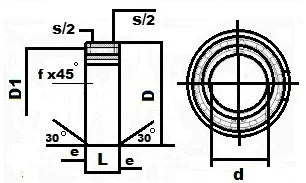

Dimension (mm)
d D D1 L s e f
8 24 25.9 8 13 0.6 0.6
