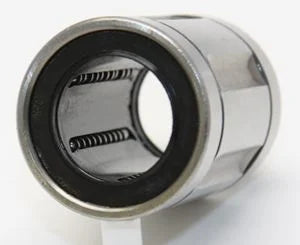

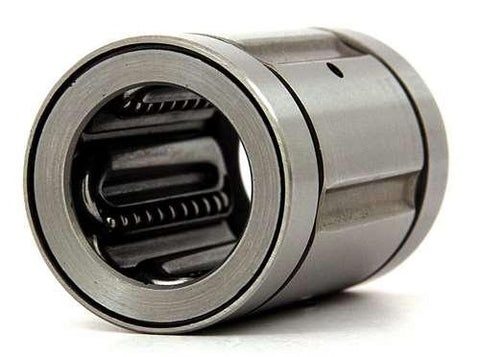

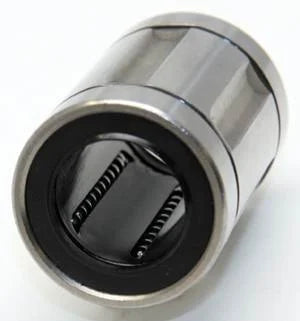

LB8UU 8mm Ball Bushing 8x15x24 Linear Motion Bearing
10,76 $ CAD 14,52 CADVous économisez 3,76 $ CAD
SKU: Kit13354
UPC: 00193019043585
UPC: 00193019043585
Item: LB8UU Bearing
Type: Linear Ball Bushings
Ball circuit: 4
Size: 8mm x 15mm x 24mm
Quantity: One Bearing
Type: Linear Ball Bushings
Ball circuit: 4
Size: 8mm x 15mm x 24mm
Quantity: One Bearing
| Linear Ball Bushings LB8UU Works with 8mm Shafts 8mm x 15mm x 24mm |
LB8UU Linear Ball Bushing works with a 8mm Shafts, Bearing inner Diameter is 8mm, Bearing outer Diameter is 15mm and Bearing Length is 24mm.
|
|
|
|
(mm) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

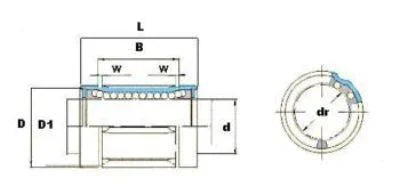

| d | D | L | B | W | D1 | Précision (mm) |
Haut (mm) |
||||||
| mm | Tolérance | mm | Tolérance | mm | Tolérance | mm | Tolérance | ||||||
| Précision | Haut | ||||||||||||
| 8 | 0-6 | 0-9 | 15 | 0-11 | 24 | 0-200 | 17.5 | 0-200 | 1.1 | 14.3 | 8 | 12 | -3 |
