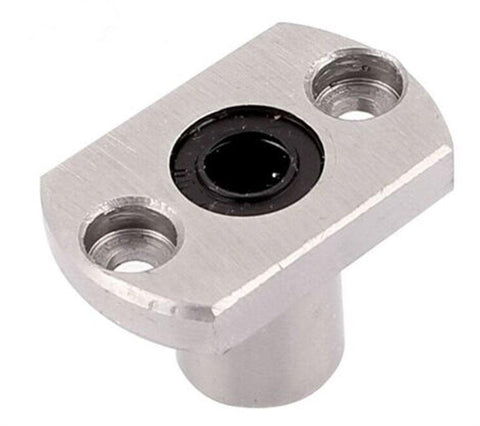

LMH10UU Silent Bushing à billes à bride de 10 mm, roulement CNC à mouvement linéaire 10x19x29 mm
19,02 $ CAD 25,68 CADVous économisez 6,66 $ CAD
SKU: LMH10UU
UPC: 00193019295045
UPC: 00193019295045
Item: LMH10UU
Type: Flanged Linear Motion Ball Bushing
Inner Diameter: 10mm
Outer Diameter: 19mm
Length: 29mm
Type: Flanged Linear Motion Ball Bushing
Inner Diameter: 10mm
Outer Diameter: 19mm
Length: 29mm
| LMH10UU Flanged Linear Motion Ball Bushing 10x19x29 |

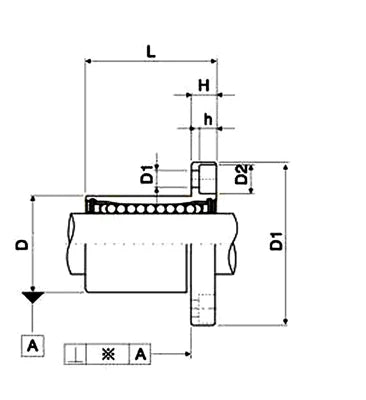

| Nombre de rouleaux | dr | D | L | D1 | W | H | Un | d1 | d2 | h |
| 4 | 10 | 19 | 29 | 40 | 25 | 6 | 29 | 4.5 | 7.5 | 4.1 |
LMH10UU Square Flanged Linear Motion Long Ball Bushing, inner diameter is 10mm, outer diameter is 19mm, and length is 29mm.
|
