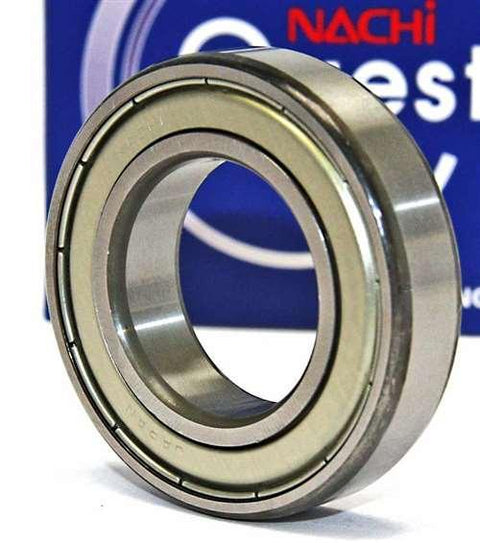

6022ZZE Nachi Bearing Shielded C3 Japan 110x170x28 Large
6022ZZE Nachi Bearing Shielded C3 Japan 110x170x28 Large
6022ZZE Nachi Bearing Shielded C3 Japan 110x170x28 Large
Nachi

6022ZZE Nachi Bearing Shielded C3 Japan 110x170x28 Large


$238.92 CAD $322.55 CADyou save $83.63 CAD
SKU: Kit9552
UPC: 00193019101933
Item: 6022ZZE Nachi Ball Bearing
Type: Nachi Deep groove Ball Bearing
Closures: Double shielded with Metal shields Z/ZZ/2Z
Radial Clearance: C3
Dimensions: 110mm x 170mm x 28mm/Metric

6022ZZE Nachi Bearing
One Bearing
Made in Japan

6022ZZE Nachi Bearing, the 6022ZZE inner diameter is 110mm, the 6022ZZE outer diameter is 170mm, 6022ZZE width is 28mm.

  • 6022ZZE Nachi Ball Bearing
  • Roulement à billes Nachi à rainure profonde
  • Fermetures : Doubles boucliers métalliques (Z/ZZ/2Z) pour la protection contre la poussière et les débris
  • Dégagement radial : C3
  • Dimensions : 110 mm x 170 mm x 28 mm/Métrique
  • ID (diamètre intérieur)/Alésage : 110 mm
  • OD (diamètre extérieur) : 170 mm
  • Largeur : 28 mm
  • Taille : 110 x 170 x 28 mm
  • Quantité : 1 roulement
  • Dynamic load rating Cr: 84500 N
  • Static load rating Cor: 73000 N
  • Limitation de la vitesse :
    • Lubrification de la graisse : 3800 tr/min
  • Equal: 6022 ZZ / 6022 2Z
  • Fabriqué au Japon

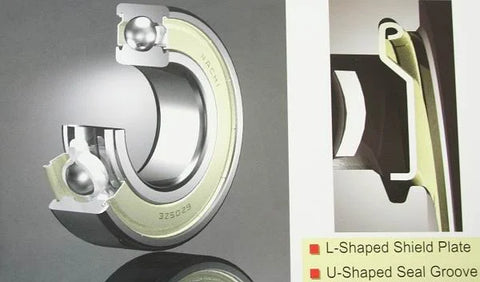

Advanced Shield Design Provides
Superior Protection and Quiet Operation
The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Supérieur pour sceller la contamination
  • Excellente rétention de graisse
  • Opération silencieuse
The Best Components Yield the Greatest Bearing Performance
Rings and balls made from select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
