6215ZZENR Nachi Bearing Shielded C3 Snap Ring Japan 75x130x25 Bearing
6215ZZENR Nachi Bearing Shielded C3 Snap Ring Japan 75x130x25 Bearing
Nachi

6215ZZENR Nachi Bearing Shielded C3 Snap Ring Japan 75x130x25 Bearing


$230.21 CAD $310.78 CADyou save $80.57 CAD
SKU: Kit9654
UPC: 00193019102893
Item: 6215ZZENR Nachi Ball Bearing
Type: Nachi Deep groove Ball Bearing
Closures: Double shielded with Metal shields ZNR/ZZNR/2ZNR
Radial Clearance: C3
Dimensions: 75mm x 130mm x 25mm/Metric

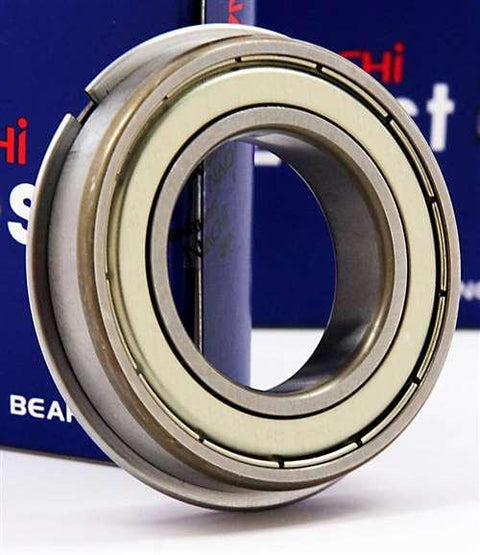

6215ZZENR Nachi Bearing
With Snap Ring (C clip)
Made in Japan

6215ZZENR Nachi Bearing with a Snap Ring, the 6215ZZENR inner diameter is 75mm, the 6215ZZENR outer diameter is 130mm, 6215ZZENR width is 25mm.

  • 6215ZZENR Nachi Ball Bearing
  • Roulement à billes Nachi à rainure profonde
  • Fermetures : Doubles boucliers métalliques (ZZ) pour une protection supplémentaire ZNR/ZZNR/2ZNR
  • Dégagement : C3 (dégagement interne accru pour une vitesse plus élevée ou une expansion thermique)
  • Dimensions : 75 mm x 130 mm x 25 mm/Métrique
  • Diamètre intérieur / Alésage : 75 mm
  • Diamètre extérieur (OD) : 130 mm
  • Largeur : 25 mm
  • Taille : 75 x 130 x 25 mm
  • Quantité : 1 roulement
  • Charge dynamique Cr : 39 500 N
  • Charge statique Cor : 33 500 N
  • Limitation de la vitesse :
    • Lubrification de la graisse : 5 700 tr/min
  • Equal: 6215 ZZ / 6215 2Z
  • Fabriqué au Japon

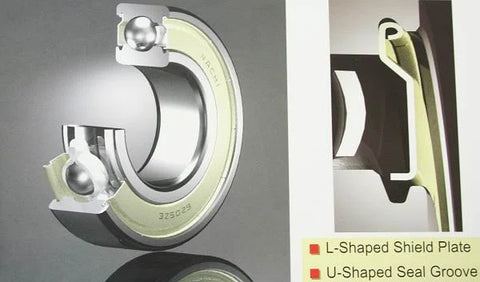

Advanced Shield Design Provides
Superior Protection and Quiet Operation
The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Supérieur pour sceller la contamination
  • Excellente rétention de graisse
  • Opération silencieuse
The Best Components Yield the Greatest Bearing Performance
Rings and balls made from select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
