6222ZZE Nachi Bearing Shielded C3 Japan 110x200x38 Large
6222ZZE Nachi Bearing Shielded C3 Japan 110x200x38 Large
6222ZZE Nachi Bearing Shielded C3 Japan 110x200x38 Large
6222ZZE Nachi Bearing Shielded C3 Japan 110x200x38 Large
Nachi

6222ZZE Nachi Bearing Shielded C3 Japan 110x200x38 Large


742,37 $ CAD1 002,20 CADVous économisez 259,83 $ CAD
SKU: Kit9582
UPC: 00193019102220
Item: 6222ZZE Nachi Ball Bearing
Type: Nachi Deep groove Ball Bearing
Closures: Double shielded with Metal shields Z/ZZ/2Z
Radial Clearance: C3
Dimensions: 110mm x 200mm x 38mm/Metric

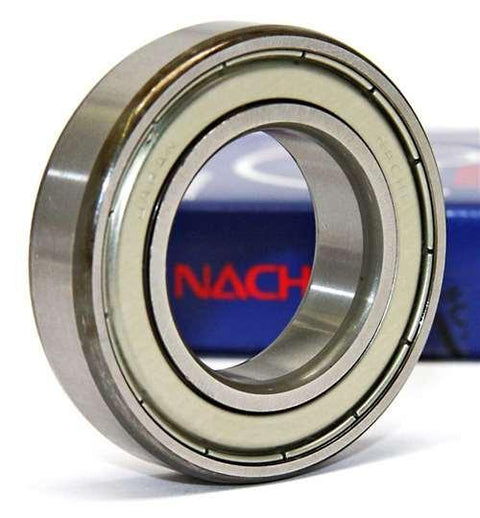

6222ZZE Nachi Bearing
110mm x 200mm x 38mm
Made in Japan

6222ZZE Nachi Bearing, the 6222ZZE inner diameter is 110mm, the 6222ZZE outer diameter is 200mm, 6222ZZE width is 38mm.

  • 6222ZZE Nachi Ball Bearing
  • Roulement à billes Nachi à rainure profonde
  • Fermetures : Doubles boucliers métalliques (Z/ZZ/2Z) pour la protection contre la poussière et les débris
  • Dégagement radial : C3
  • ID (diamètre intérieur)/Alésage : 110 mm
  • Diamètre extérieur (OD) : 200 mm
  • Largeur : 38 mm
  • Quantité : 1 roulement
  • Charge dynamique Cr : 144 000 N
  • Charge statique Cor : 117 000 N
    • Lubrification de la graisse : 3 200 tr/min
  • Equivalents: 222KDD, 222SS, 6222.2ZR, 222SFF, 6222-2Z and 6222ZZE

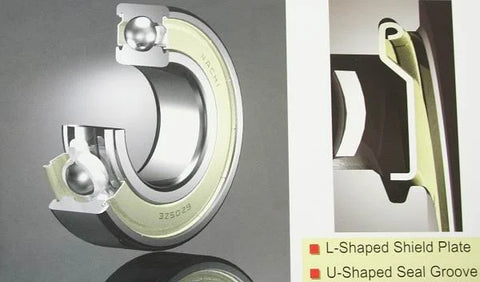

Advanced Shield Design Provides
Superior Protection and Quiet Operation
The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Supérieur pour sceller la contamination
  • Excellente rétention de graisse
  • Opération silencieuse
The Best Components Yield the Greatest Bearing Performance
Rings and balls made from select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
