AK10GUU NB 10mm Compact Block Unit Motion Linear Bearing
114,20 $ CAD 154,16 CADVous économisez 39,96 $ CAD
SKU: AK10GUU_NB
UPC: 00193019106341
UPC: 00193019106341
Item: AK10GUU NB Bearing
Type: Linear Ball Bushing
Shaft Diameter: 10mm
Quantity: One Bearing
Dynamic load rating Cr: 372 N
Type: Linear Ball Bushing
Shaft Diameter: 10mm
Quantity: One Bearing
Dynamic load rating Cr: 372 N

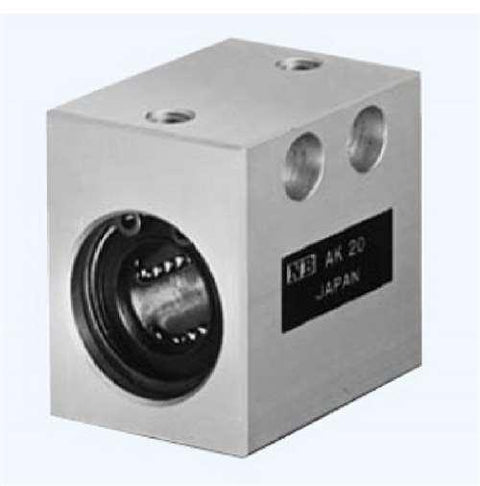

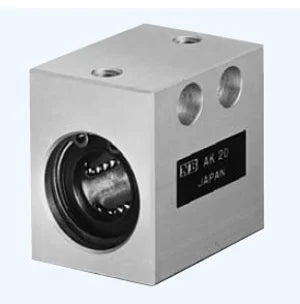

| AK10GUU NB Compact Block:Slide Unit Made in Japan:NB Linear Systems |
AK10GUU NB Compact Block, The inner diameter is 10mm, The retainer material is resin, Series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|

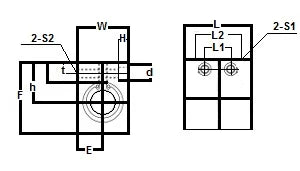

| Diamètre de contact intérieur | Dimensions extérieures | Dimensions de montage | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | Tolérance | h | E | W | L | F | L2 | S1 | L1 | t | S2 | d | H |
| 10 | 0-9 | 19 | 13 | 26 | 39 | 32 | 27 | M6 | 15 | 6 | M5 | 8 | 6 |
