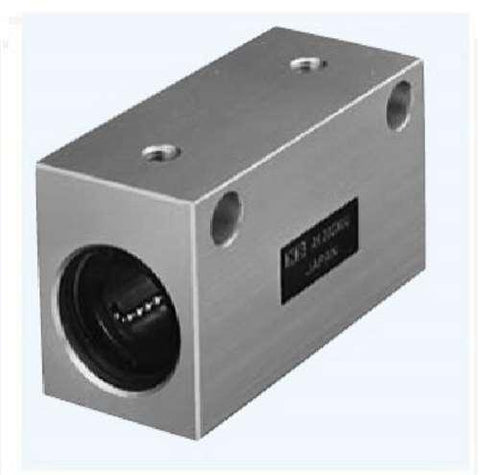

AK13GWUU NB 13mm Double Wide Compact Block Unit Motion Linear Bearing
232,21 $ CAD 313,49 CADVous économisez 81,28 $ CAD
SKU: AK13GWUU_NB
UPC: 00193019106396
UPC: 00193019106396
Item: AK13GWUU NB Bearing
Type: Linear Ball Bushing
Shaft Diameter: 13mm
Quantity: One Bearing
Dynamic load rating Cr: 813 N
Type: Linear Ball Bushing
Shaft Diameter: 13mm
Quantity: One Bearing
Dynamic load rating Cr: 813 N
| AK13GWUU NB Double Wide Compact Block:Slide Unit Made in Japan:NB Linear Systems |
AK13GWUU NB Double Wide Compact Block, The inner diameter is 13mm, The retainer material is resin, Series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|

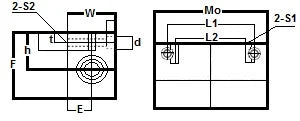

| Diamètre de contact intérieur | Dimensions extérieures | Dimensions de montage | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | Tolérance | h | E | W | L | F | L2 | S1 | L1 | t | S2 | d | H |
| 13 | 0-9 | 25 | 15 | 30 | 74 | 43 | 42 | M6 | 13.5 | 7 | M6 | 9 | 7 |
