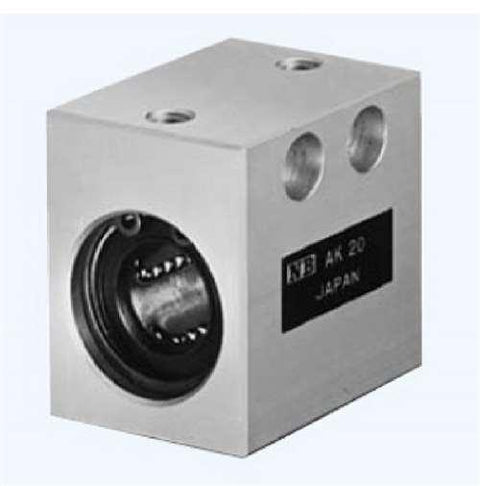

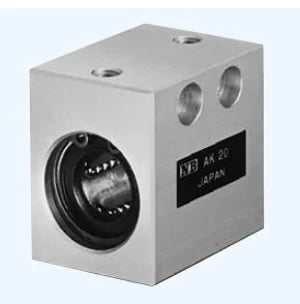

AK20GUU NB 20mm Compact Block Unit Motion Linear Bearing
205,56 $ CAD 277,50 CADVous économisez 71,94 $ CAD
SKU: AK20GUU_NB
UPC: 00193019106426
UPC: 00193019106426
Item: AK20GUU NB Bearing
Type: Linear Ball Bushing
Shaft Diameter: 20mm
Quantity: One Bearing
Dynamic load rating Cr: 882 N
Type: Linear Ball Bushing
Shaft Diameter: 20mm
Quantity: One Bearing
Dynamic load rating Cr: 882 N
| AK20GUU NB Compact Block:Slide Unit Made in Japan:NB Linear Systems |
AK20GUU NB Compact Block, The inner diameter is 20mm, The retainer material is resin, Series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|

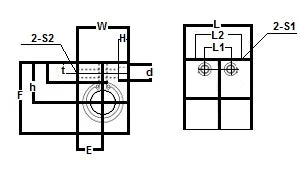

| Diamètre de contact intérieur | Dimensions extérieures | Dimensions de montage | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | Tolérance | h | E | W | L | F | L2 | S1 | L1 | t | S2 | d | H |
| 20 | 0-10 | 31 | 21 | 42 | 52 | 54 | 36 | M8 | 18 | 8 | M8 | 11 | 8 |
