AK25GUU NB 25mm Compact Block Unit Motion Linear Bearing
251,25 $ CAD 339,18 CADVous économisez 87,93 $ CAD
SKU: AK25GUU_NB
UPC: 00193019106440
UPC: 00193019106440
Item: AK25GUU NB Bearing
Type: Linear Ball Bushing
Shaft Diameter: 25mm
Quantity: One Bearing
Dynamic load rating Cr: 980 N
Type: Linear Ball Bushing
Shaft Diameter: 25mm
Quantity: One Bearing
Dynamic load rating Cr: 980 N
| AK25GUU NB Compact Block:Slide Unit Made in Japan:NB Linear Systems |
AK25GUU NB Compact Block, The inner diameter is 25mm, The retainer material is resin, Series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|

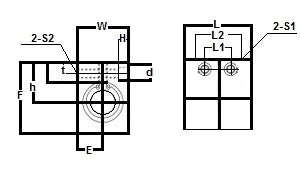

| Diamètre de contact intérieur | Dimensions extérieures | Dimensions de montage | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | Tolérance | h | E | W | L | F | L2 | S1 | L1 | t | S2 | d | H |
| 25 | 0-10 | 37 | 26 | 52 | 69 | 65 | 42 | M10 | 22 | 9 | M10 | 14 | 10 |
