NB
AK8GUU NB 8mm Compact Block Unit Motion Linear Bearing
112,29 $ CAD 151,59 CADVous économisez 39,30 $ CAD
SKU: AK8GUU
UPC: 00193019106501
UPC: 00193019106501
Item: AK8GUU NB Bearing
Type: Linear Ball Bushing
Shaft Diameter: 8mm
Quantity: One Bearing
Dynamic load rating Cr: 274 N
Type: Linear Ball Bushing
Shaft Diameter: 8mm
Quantity: One Bearing
Dynamic load rating Cr: 274 N

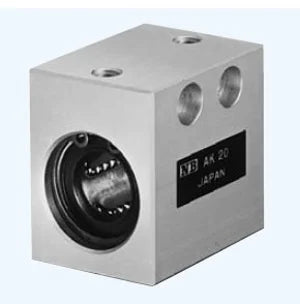

| AK8GUU NB Compact Block:Slide Unit Made in Japan:NB Linear Systems |
AK8GUU NB Compact Block, The inner diameter is 8mm, The retainer material is resin, Series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|
| Diamètre de contact intérieur | Dimensions extérieures | Dimensions de montage | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | Tolérance | h | E | W | L | F | L2 | S1 | L1 | t | S2 | d | H |
| 8 | 0-9 | 16 | 10 | 20 | 32 | 26 | 20 | M5 | 10 | 5 | M4 | 6 | 5 |
