NB

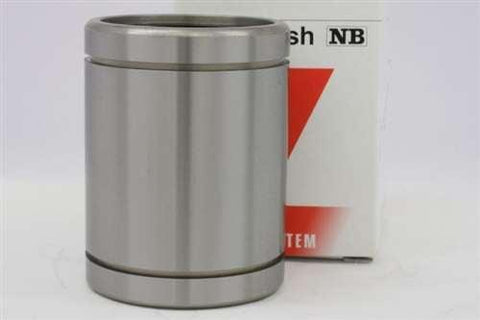

LBB24UU 1-1/2" Sealed Linear Motion Ball Bushing
207,47 $ CAD280,07 CADVous économisez 72,60 $ CAD
SKU: LBB24UU
UPC: 00193019127865
UPC: 00193019127865
Item: LBB24UU Linear Motion Ball Bushing
Type: NB Systems Linear Motion Ball Bushing
Shaft Diameter: 1 1/2" inch
Quantity: One Bearing
Dynamic load rating: 2180 N
Type: NB Systems Linear Motion Ball Bushing
Shaft Diameter: 1 1/2" inch
Quantity: One Bearing
Dynamic load rating: 2180 N
| LBB24UU with Seals on both sides NB Nippon Bearing Linear Systems Made in Japan |
LBB24UU 1 1/2" Bore linear motion ball bushings/bearings, LBB24UU with Seals on both sides, inner diameter(bore) is 1 1/2" inch dimensions with resin retainer, Bearing is a high accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|
| Dimensions principales et tolérance (pouces) | Excentricité (pouce) |
Jeu radial (pouce) |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | B | W | D1 | |||||||
| pouce | Tolérance | pouce | Tolérance | pouce | Tolérance | pouce | Tolérance | |||||
| 2" | 0-0.0005 | 3" | 0-.0009 | 4" | 0-0.012 | 2-1/64" | 0-0.012 | 1/16" | 1-57/64" | 0.0007 | 0.001 | |
