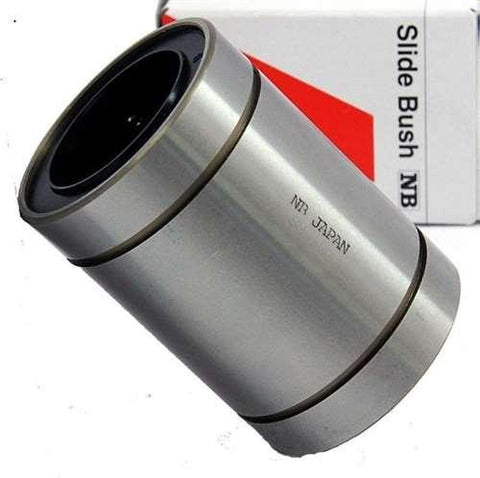

LM355270UU 35mm Slide Bush Ball Bushing Linear Motion Bearing
224,60 $ CAD 303,21 CADVous économisez 78,61 $ CAD
SKU: LM355270UU
UPC: 00193019129333
UPC: 00193019129333
| LM355270UU Type Seals on Both Sides: Slide Bush Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
LM355270UU Linear Slide Bush, bearing is Seals on Both Sides, bearing is a high accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|

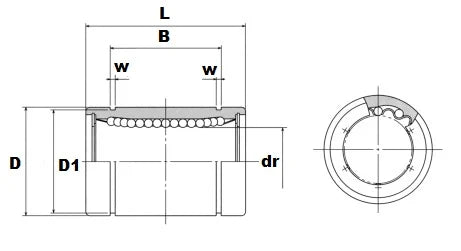

| Dimensions majeures | Excentricité | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | B | W | D1 | h | |||||
| mm | Tolérance | mm | Tolérance | mm | Tolérance | mm | Tolérance | ||||
| 35 | 0-12 | 52 | 0-19 | 70 | 0-0.3 | 49.5 | 0-0.3 | 2.1 | 49 | 2.5 | 20 |
