NB SM12G-OP 12mm Slide Bush Ball Miniature Linear Motion Bearing
76,13 $ CAD 102,76 CADVous économisez 26,63 $ CAD
SKU: Kit19548
UPC: 00193019111611
UPC: 00193019111611
Item: SM12G-OP Bearing
Type: Linear Slide Bush
Retainer Material: Resin
Shaft Diameter: 12mm
Number of Ball Circuits: 3
Type: Linear Slide Bush
Retainer Material: Resin
Shaft Diameter: 12mm
Number of Ball Circuits: 3
| SM12G-OP Type Open: Slide Bush Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |

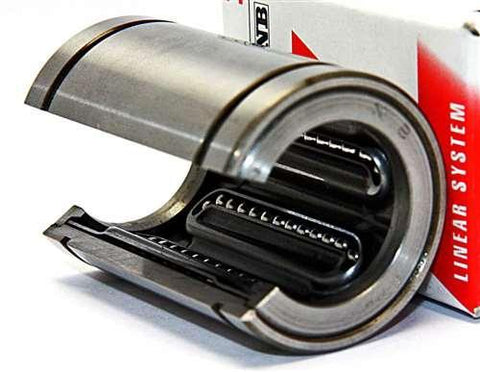

SM12G-OP Linear Slide Bush, Retainer material is resin, bearing is open, bearing is a high accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|
| Dimensions majeures | Excentricité | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | B | W | D1 | h | Diplôme | |||||
| mm | Tolérance | mm | Tolérance | mm | Tolérance | mm | Tolérance | |||||
| 12 | 0-9 | 21 | 0-13 | 30 | 0-0.2 | 23 | 0-0.2 | 1.3 | 20 | 8 | 80 | 12 |
