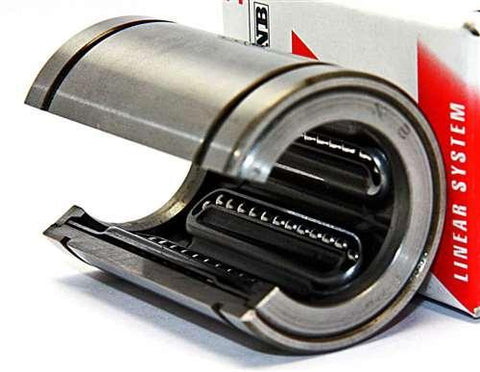

NB SM20GUU-OP 20mm Slide Bush Ball Miniature Linear Motion Bearing
125,62 $ CAD 169,58 CADVous économisez 43,96 $ CAD
SKU: Kit19563
UPC: 00193019111758
UPC: 00193019111758
Item: SM20GUU-OP Bearing
Type: Linear Slide Bush
Retainer Material: Resin
Shaft Diameter: 20mm
Number of Ball Circuits: 4
Type: Linear Slide Bush
Retainer Material: Resin
Shaft Diameter: 20mm
Number of Ball Circuits: 4
| SM20GUU-OP Type Open Seals on Both Sides: Slide Bush Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
SM20GUU-OP Linear Slide Bush, bearing is open, It is seals on both sides, it is Retainer material is resin, bearing is a high accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|
| Dimensions majeures | Excentricité | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | B | W | D1 | h | Diplôme | |||||
| mm | Tolérance | mm | Tolérance | mm | Tolérance | mm | Tolérance | |||||
| 20 | 0-10 | 32 | 0-16 | 42 | 0-0.3 | 30.5 | 0-0.3 | 1.6 | 30.5 | 11 | 60 | 15 |
