NB
NB SW10UU 5/8"inch Seals Ball Bushings Linear Motion
104,68 $ CAD 141,31 CADvous économisez 36,63 $ CAD
SKU: Kit16204
UPC: 00193019110324
UPC: 00193019110324
Item: SW10UU NB Ball Bearing
Type: Nippon Bearing Linear System
Number of ball circuits: 4
Size: 5/8" x 1 1/8" x 1 1/2" inch
Inner Diameter: 5/8" inch
Type: Nippon Bearing Linear System
Number of ball circuits: 4
Size: 5/8" x 1 1/8" x 1 1/2" inch
Inner Diameter: 5/8" inch
| SW10UU Seals on both sides NB Nippon Bearing Linear Systems Made in Japan |

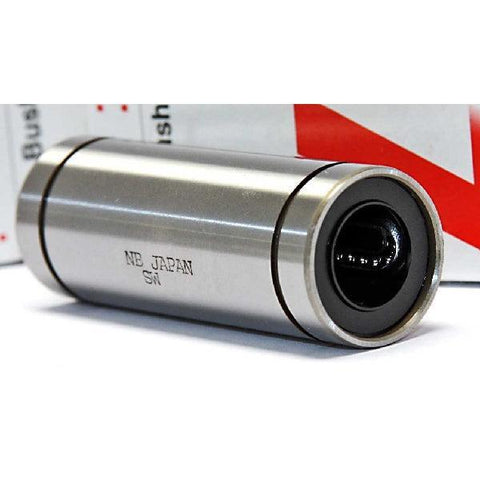

SW10UU 5/8" Bore linear motion ball bushing/bearing, SW10UU is Seals on both sides, the innerdiameter(bore) is 5/8" inch dimensions with steelretainer, bearing is high accuracy grade linear bushing,series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|
| Dimensions (pouces) | Excentricité | Dégagement radial | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | B | W | D1 | ||||||||
| pouce | Tolérance pouce |
pouce | Tolérance pouce |
pouce | Tolérance pouce |
pouce | Tolérance pouce |
Précision pouce |
Haut pouce |
||||
| 5/8" | 0-.00025 | 0-.0004 | 1-1/8" | 0-.0005 | 1-1/2" | 0-.008 | 1.1039" | 0-.008 | 0.0559" | 1.059" | 0.0003 | 0.0005 | 0.0001 |
