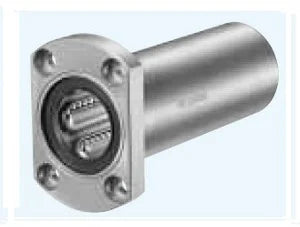

SMST16GWUU NB 16mm Slide Bush Bushings Miniature Motion Linear Bearing
453,02 $ CAD 611,57 CADVous économisez 158,55 $ CAD
SKU: Kit20747
UPC: 00193019121405
UPC: 00193019121405
Item: SMST16GWUU NB Bearing
Type: Linear Slide Bush
Retainer Material: Resin
Bearing Inner Diameter: 16mm
Quantity: One Bearing
Type: Linear Slide Bush
Retainer Material: Resin
Bearing Inner Diameter: 16mm
Quantity: One Bearing
| SMST16GWUU NB Two Side Cut Double Wide Flange Anticorrosion Slide Bush Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
SMST16GWUU NB Two Side Cut Double Wide Flange Slide Bush, The retainer material is resin, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
|
| Dimensions majeures | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | W | t | Un | F | X x Y x Z | ||
| mm | Tolérance | mm | Tolérance | |||||||
| 16 | 0-10 | 28 | 0-16 | 70 | 48 | 34 | 6 | 31 | 22 | 4,5 x 7,5 x 4,1 |
