NB

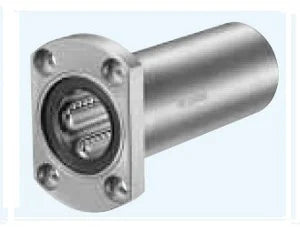

SMST20GWUU NB 20mm Slide Bush Bushings Miniature Motion Linear Bearing
458,73 $ CAD 619,27 CADVous économisez 160,54 $ CAD
SKU: Kit20748
UPC: 00193019121412
UPC: 00193019121412
Item: SMST20GWUU NB Bearing
Type: Linear Slide Bush
Retainer Material: Resin
Bearing Inner Diameter: 20mm
Quantity: One Bearing
Type: Linear Slide Bush
Retainer Material: Resin
Bearing Inner Diameter: 20mm
Quantity: One Bearing
| SMST20GWUU NB Two Side Cut Double Wide Flange Anticorrosion Slide Bush Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
SMST20GWUU NB Two Side Cut Double Wide Flange Anticorrosion Slide Bush, The retainer material is resin, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
|

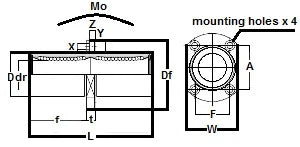

| Dimensions majeures | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | W | t | Un | F | X x Y x Z | ||
| mm | Tolérance | mm | Tolérance | |||||||
| 20 | 0-12 | 32 | 0-19 | 80 | 54 | 38 | 8 | 36 | 24 | 5,5 x 9 x 5,1 |
