NB
SMST25GWUUE NB 25mm Slide Bush Bushings Linear Bearing
957,45 $ CAD 1 292,55 CADVous économisez 335,10 $ CAD
SKU: Kit20798
UPC: 00193019121870
UPC: 00193019121870
Item: SMST25GWUUE NB Bearing
Type: Linear Slide Bush
Retainer Material: resin
Bearing Inner Diameter: 25mm
Quantity: One Bearing
Type: Linear Slide Bush
Retainer Material: resin
Bearing Inner Diameter: 25mm
Quantity: One Bearing
| SMST25GWUUE NB Two Side Cut Double Wide Flange Anticorrosion Slide Bush Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
SMST25GWUUE NB Two Side Cut Double Wide Flange Anticorrosion Slide Bush, The retainer material is resin, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
|

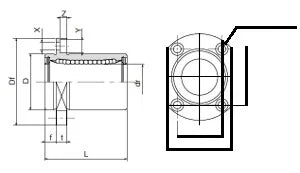

| Dimensions majeures | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | W | t | Un | F | X x Y x Z | ||
| mm | Tolérance | mm | Tolérance | |||||||
| 25 | 0-12 | 40 | 0-19 | 112 | 62 | 46 | 8 | 40 | 32 | 5,5 x 9 x 5,1 |
